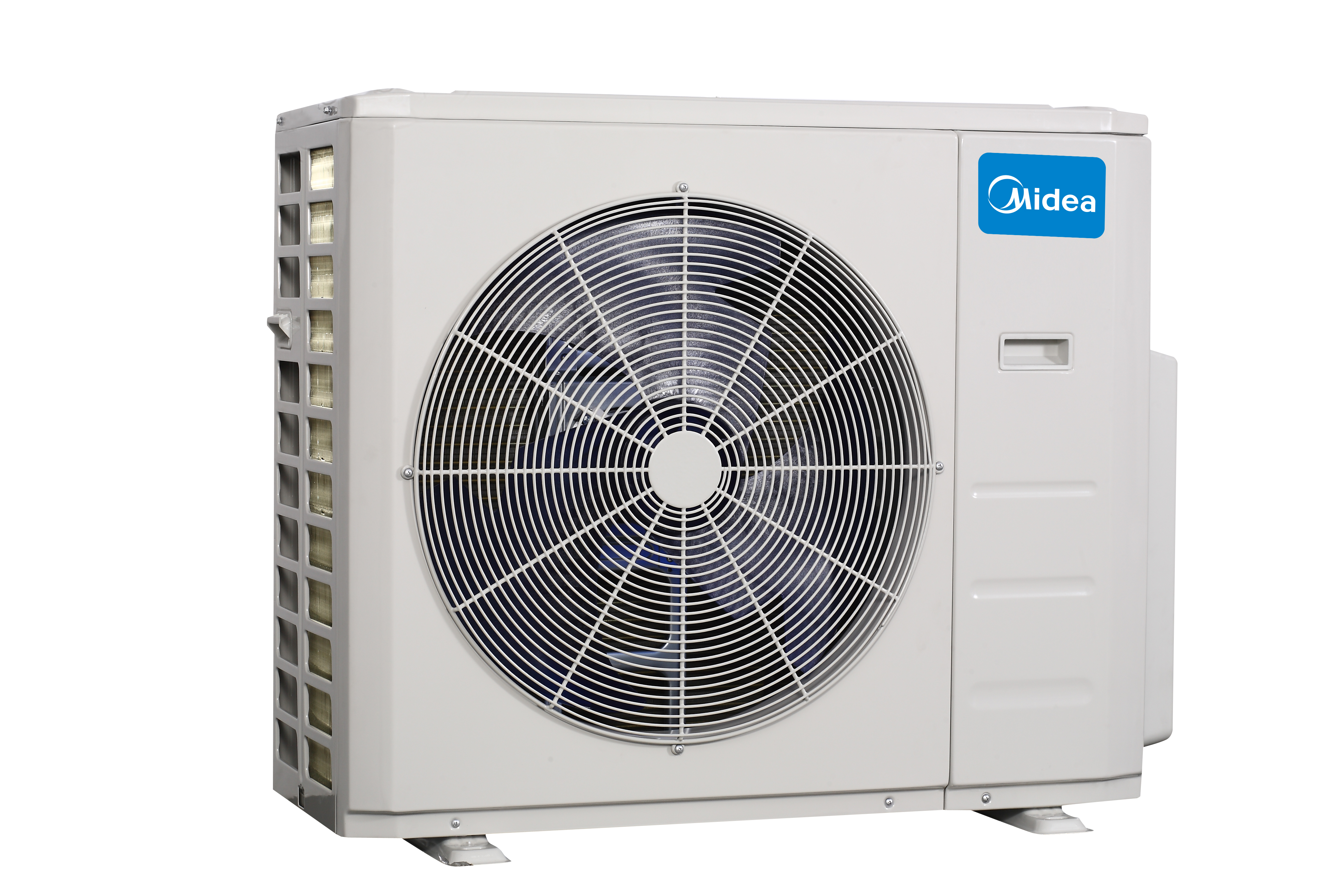

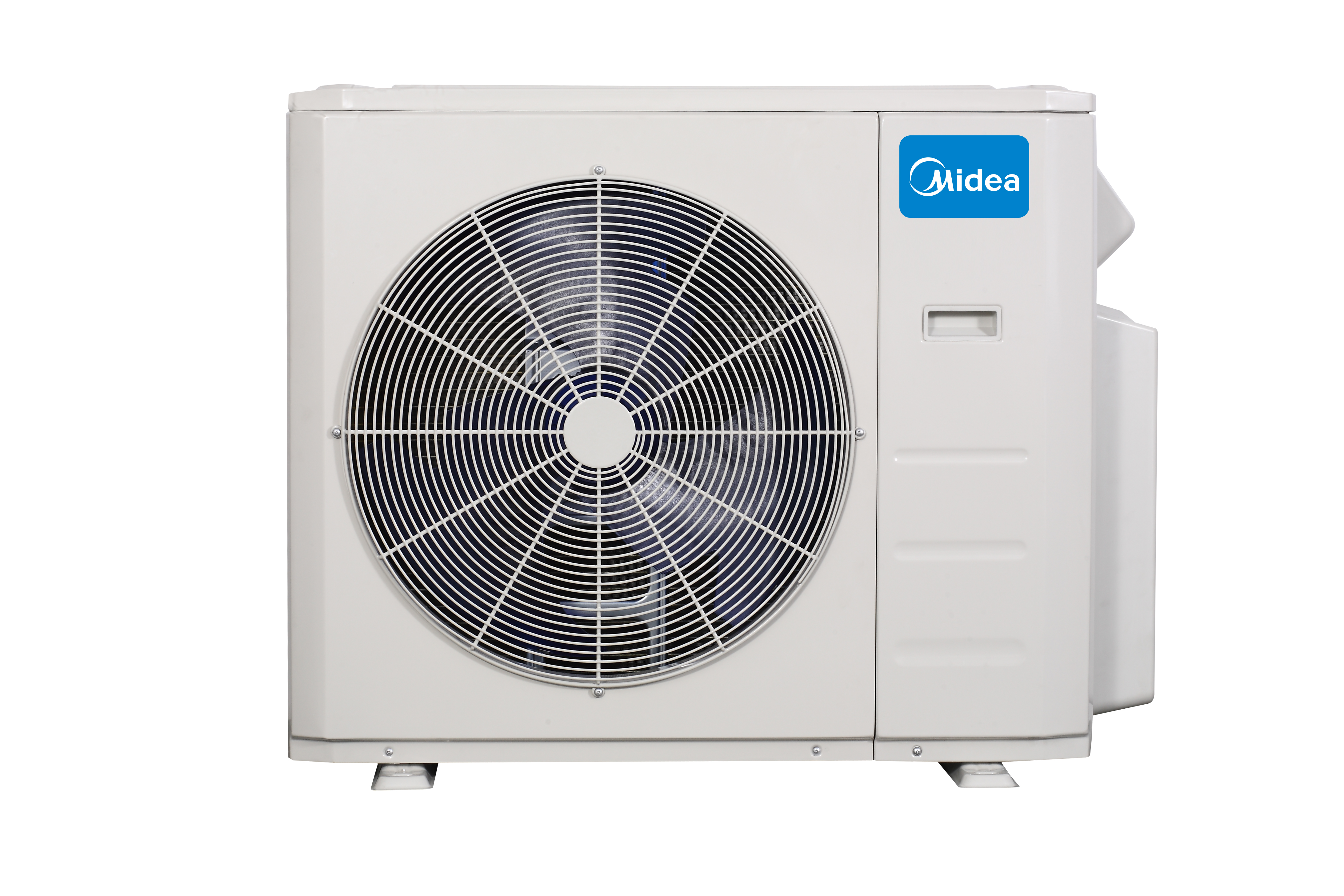

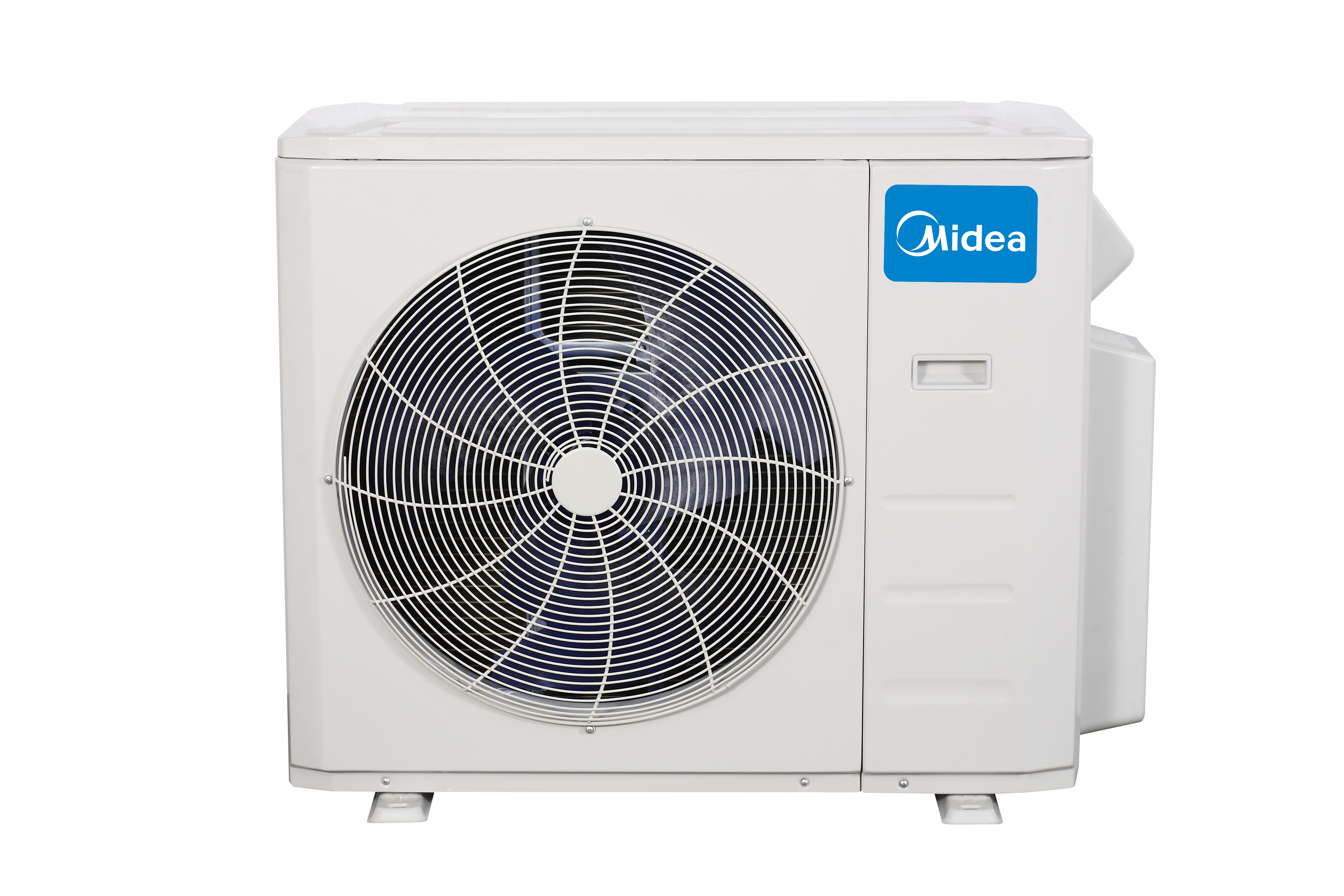

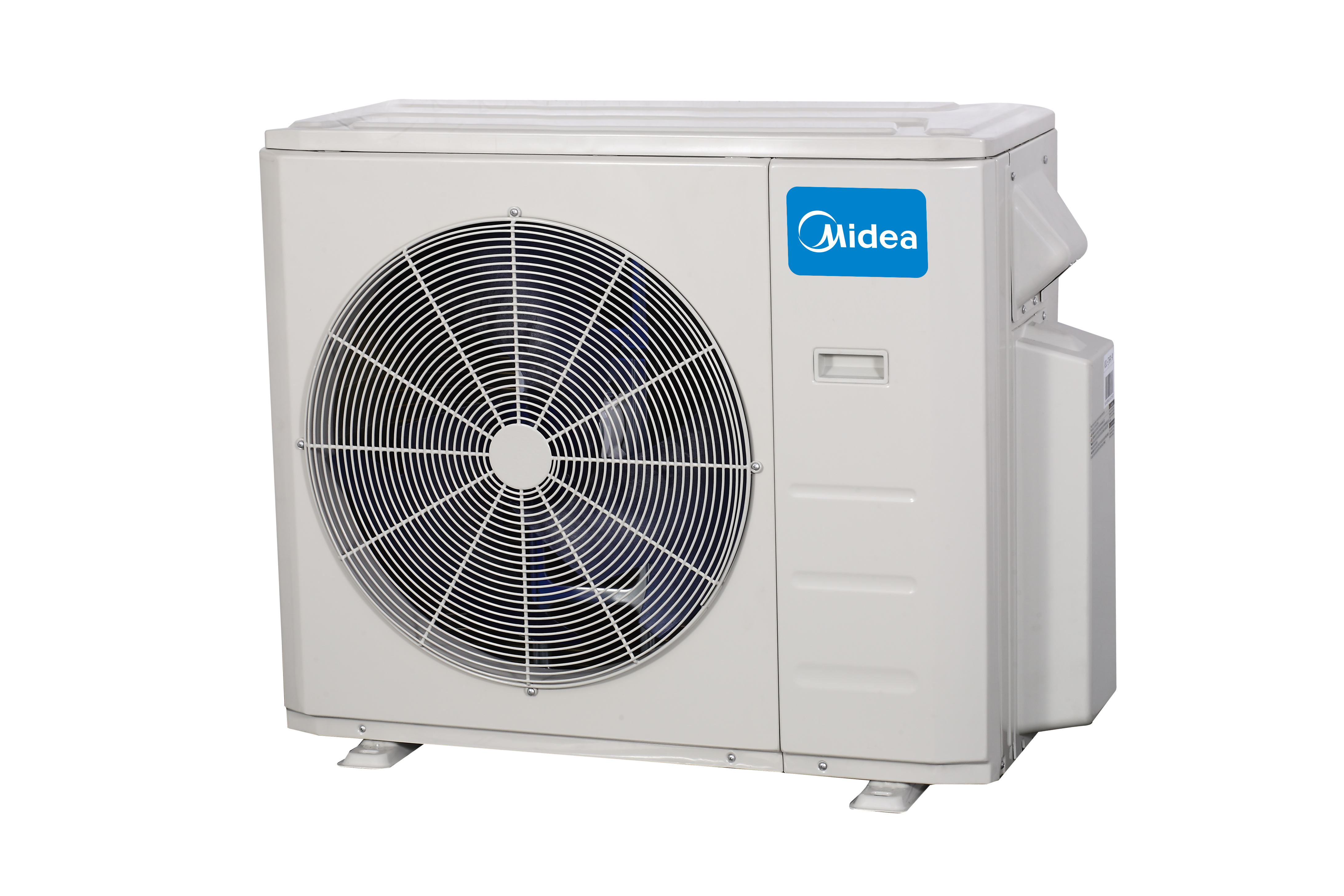

MIDEA Multi-Zone Advanced 36K Advanced Outdoor Unit
Advanced Heat -25C 5 Port 36,000 BTU-R454B
Model#: MO5EXH36B- 2A
Technical Specifications
Refrigerant(ASHRAE)
R454B
Brand
Midea
Fuse Size(Max)
30 A
BTU Cooling(BTU/h)
36,000
Colour
White
Compressor Type
Rotary Inverter
Connection-Liquid(OD)
5x1/4
Connection-Vapour/Gas(OD)
4x3/8 + 1x1/2
Unit Location
Outdoor
Country of Origin
China
Phase/Type
1/60Hz
Product Length/Depth
16.37 in
Product Height
38.37 in
Product Weight
212 lbs
Product Width
38.5 in
SEER2 Rating
24
System Type
Ductless
Supply Voltage
230 V
Zone Type
Multi
BTU Heating(BTU/h)
37,000
HSPF2 (Region V)
7.4
Nominal Capacity
36,000
Tons
3
Sound Level (dBA)
65
Documents
Multi-zone Advanced Heat ODU 36K Submittal
PDF
Multi-zone Advanced Heat ODU Installation Manual
PDF
