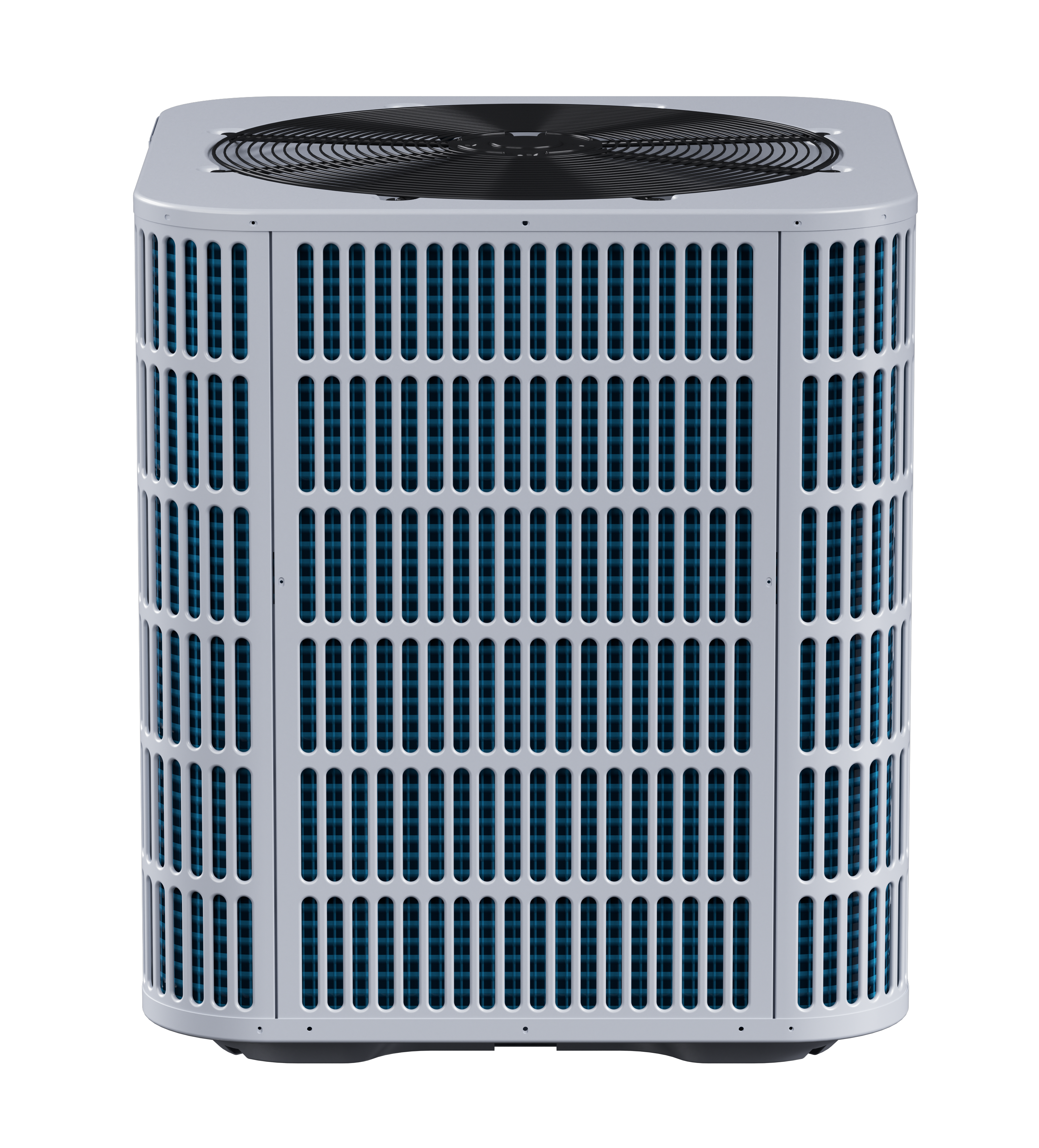

2 ton Air Conditioner

Compact design, easy installation and transportation
Model#: MOVA-24CN1-M134G

  • R410A chlorine-free refrigerant.

  • Energy-efficient compressor.

  • Internally protection against high temperature motor overload conditions.

  • High quality condenser with inner-groove copper tube and aluminum fin.

  • Service valves with sweat connections and easy-access gauge ports.

  • Factory-installed high pressure switch.

  • AHRI certified and ETL listed.

  • Optional drier filter as accessory

  • Powder-painted galvanized steel cabinet.

Technical Specifications

Refrigerant(ASHRAE)
R410A
Brand
Midea
Fuse Size(MCA)
20A
BTU Cooling(BTU/h)
24,000
Colour
Gray
Compressor Type
Rotary
Connection-Liquid(OD)
3/8
Connection-Vapour/Gas(OD)
3/4
Unit Location
Outdoor
Country of Origin
China
Phase/Type
1/60Hz
Product Length/Depth
23.63 in
Product Height
24.94 in
Product Weight
119
Product Width
23.63 in
SEER2 Rating
13.4
System Type
Air Conditioner
Supply Voltage
230 Vac
Unit Type
Condenser
Zone Type
Central
Nominal Capacity
24,000
Tons
2
Sound Level (dBA)
72
