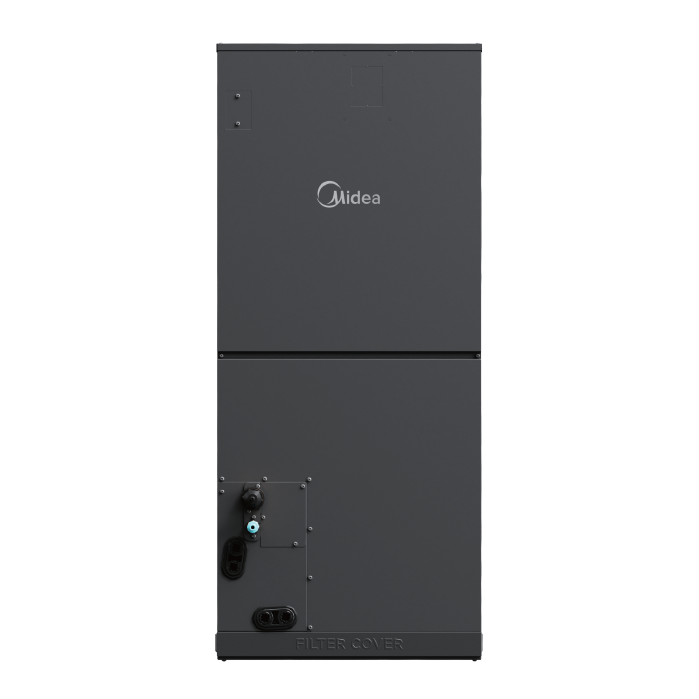

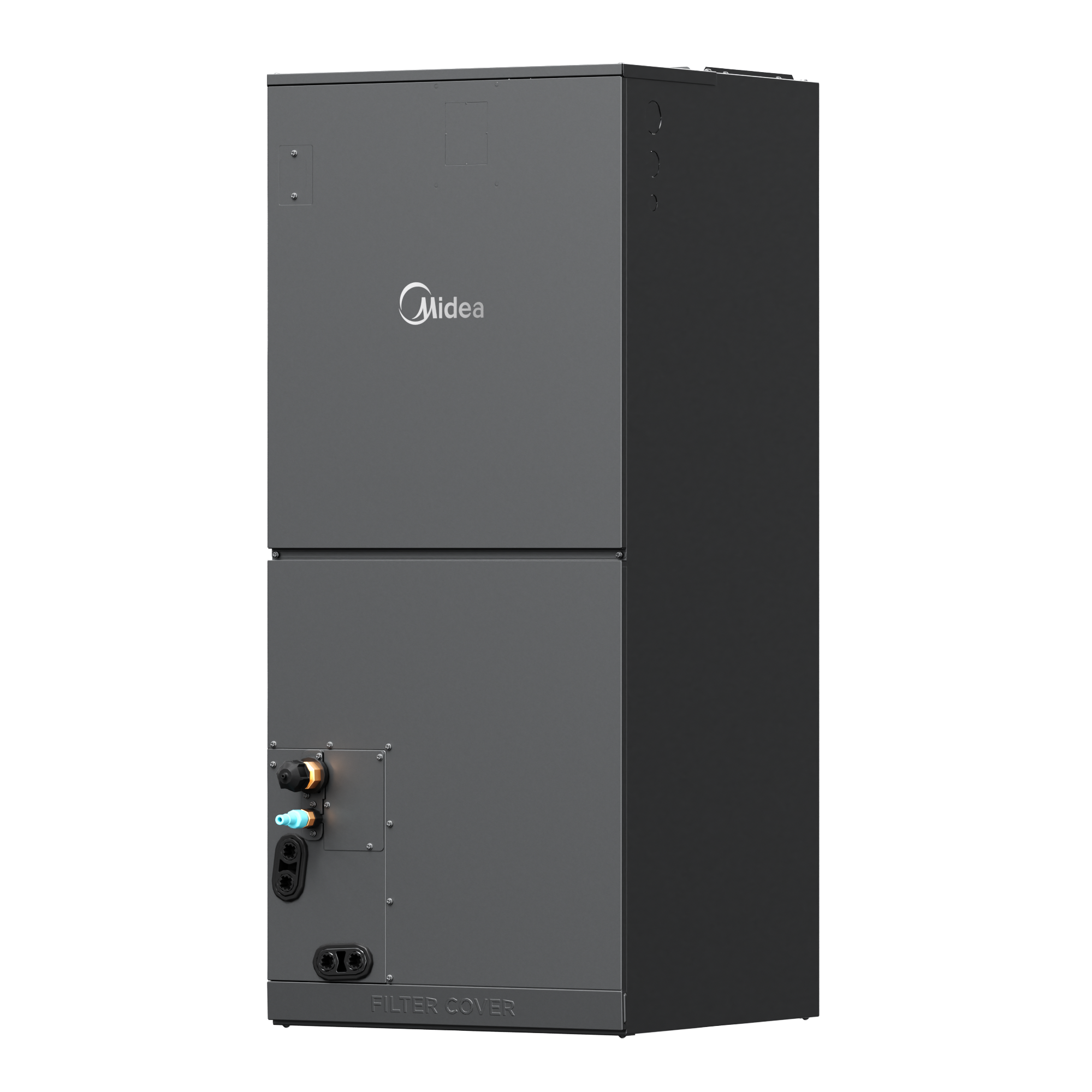

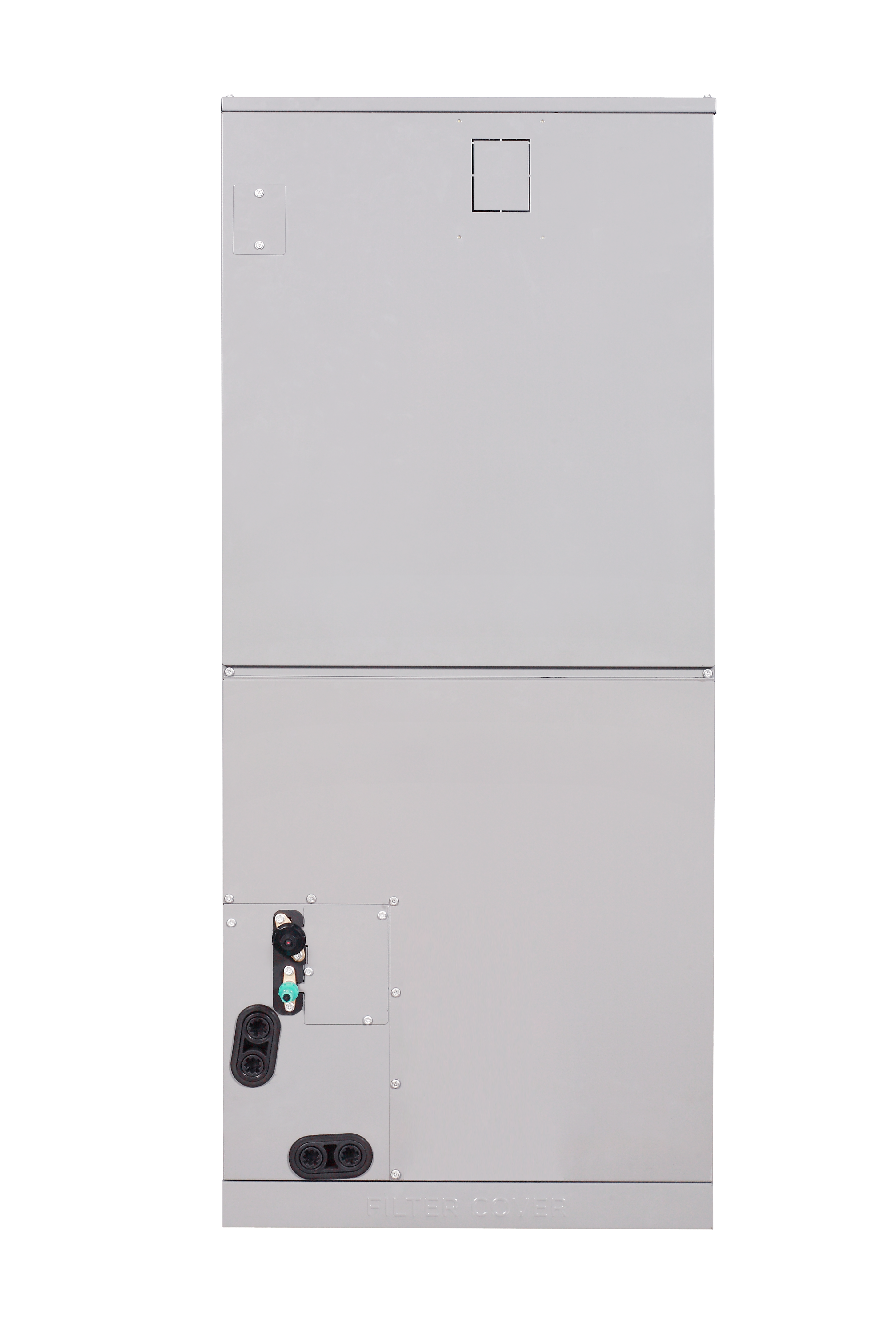

Midea EVOX (G2) 5 ton Air Handler R454B

High Efficiency Indoor Unit Structure
Model#: MAUHE-H60B-2A

  • Symmetric fan blower design

    • Enhanced airflow circulation

  • 4-way installation: Upflow, Downflow, Right, Left.

  • Compatible with 485 or 24V

    • Automatically identifying the control mode, no need for manual conversion.

  • Constant CFM ECM motor provides consistent airflow up to 0.8 in. w.c.

  • Electronic expansion valve (EEV) control

    • Better throttling for highly efficient operation.

  • Optional auxiliary heat kits available up to 25kW.

  • All-Aluminum Coil.

  • Quiet Operation

    • Down to 35 dB(A) level.




Technical Specifications

Refrigerant(ASHRAE)
R454B
Brand
Midea
Coil Type
Case
Colour
Gray
Connection-Liquid(OD)
3/8
Connection-Vapour/Gas(OD)
3/4
Unit Location
Indoor
Country of Origin
China
Product Length/Depth
21 in
Product Height
53 in
Product Weight
131 lbs
Product Width
24.5 in
System Type
AHU
Zone Type
Central ducted
Nominal Capacity
60,000
Tons
5

Documents

EVOX G2 Air Handler Brochure

PDF

EVOX User Manual

PDF

EVOX G2 5 ton AHU Submittal

PDF

EVOX R454B Air Handler Installation Manual

PDF

R454B Extreme Heat 5 ton Submittal

PDF
