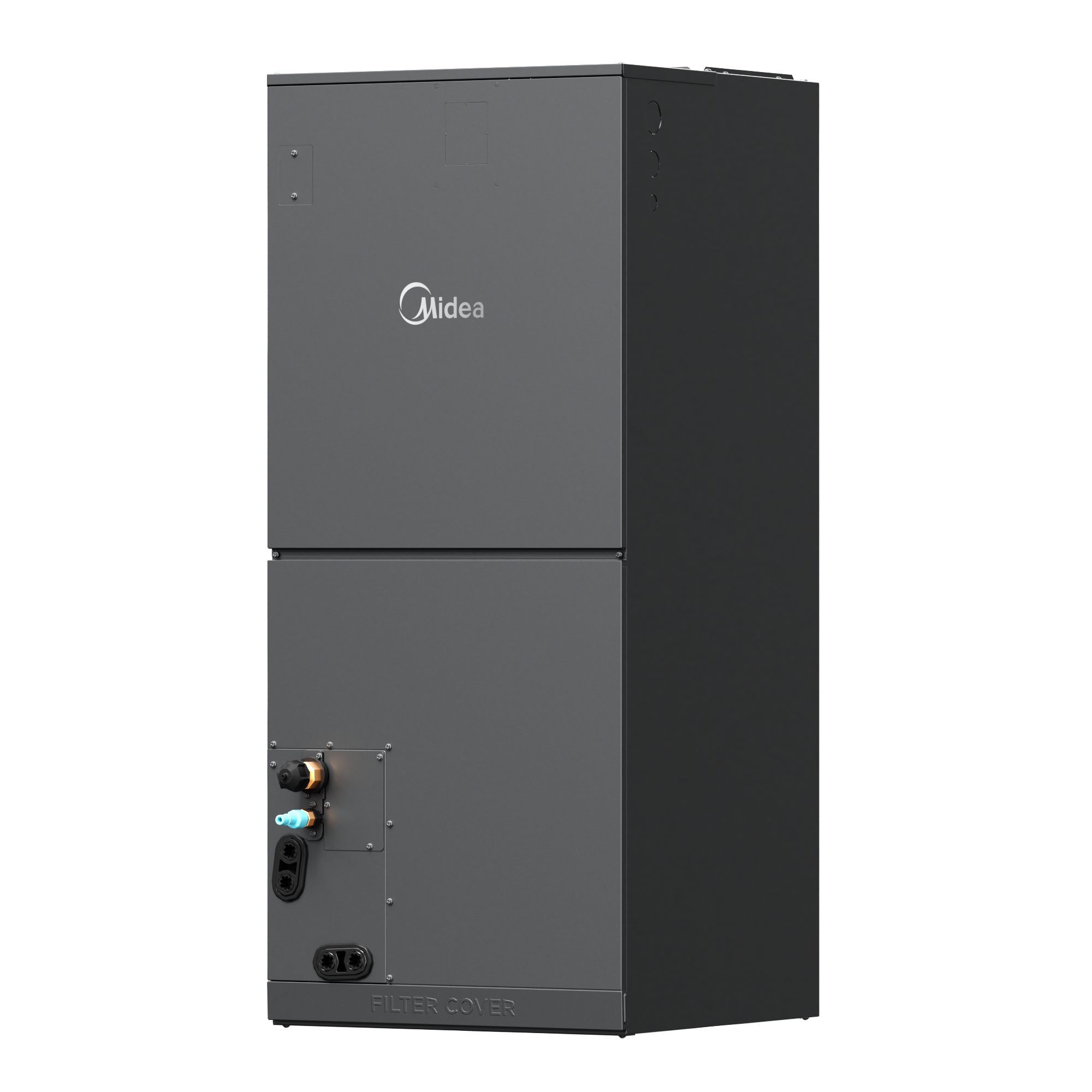

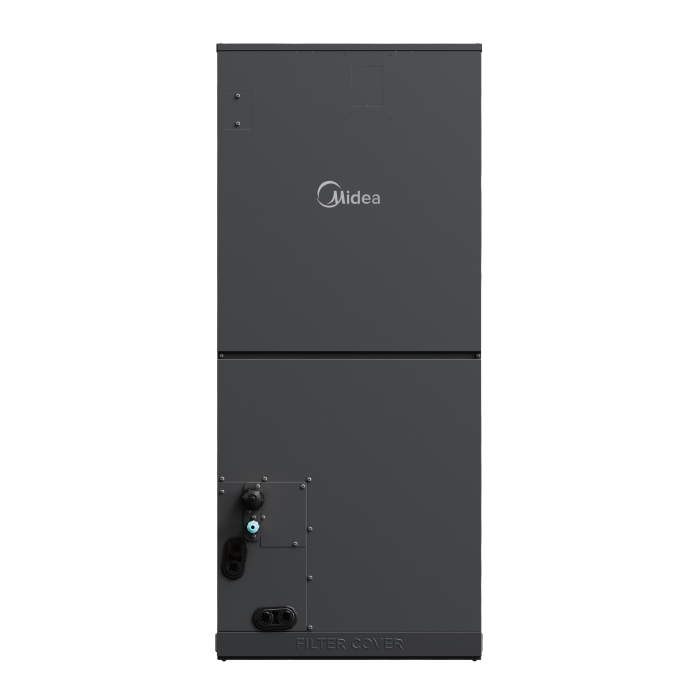

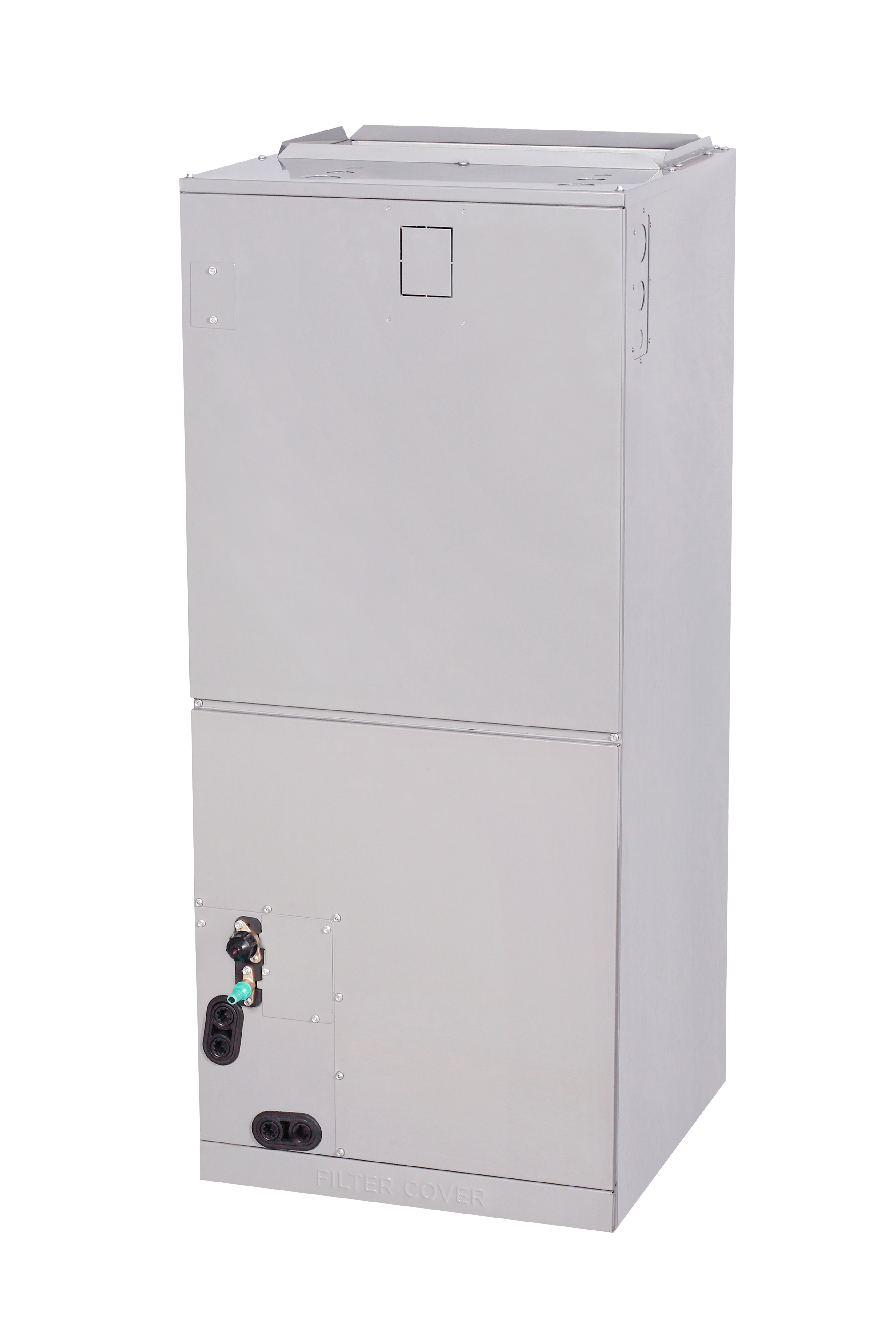

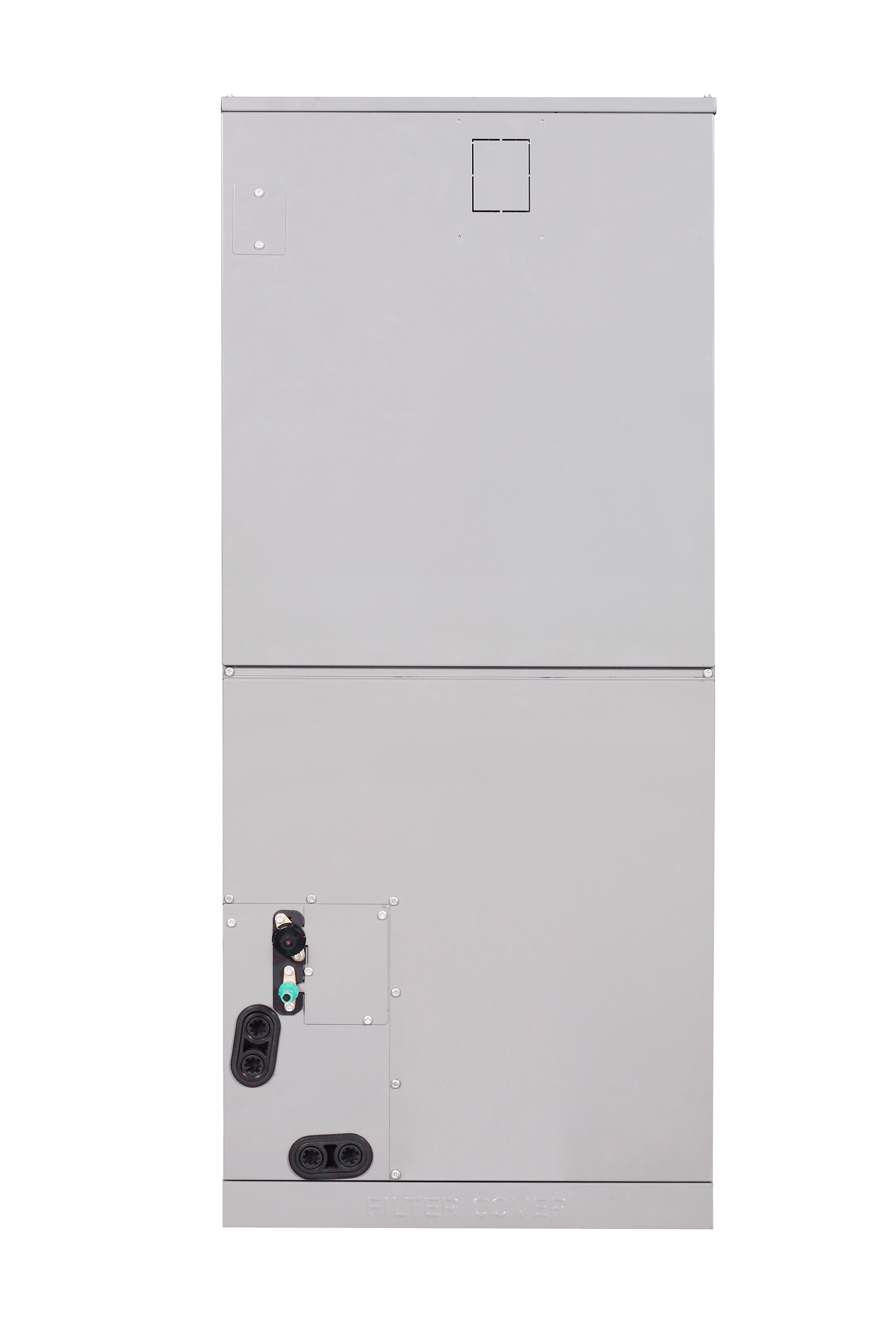

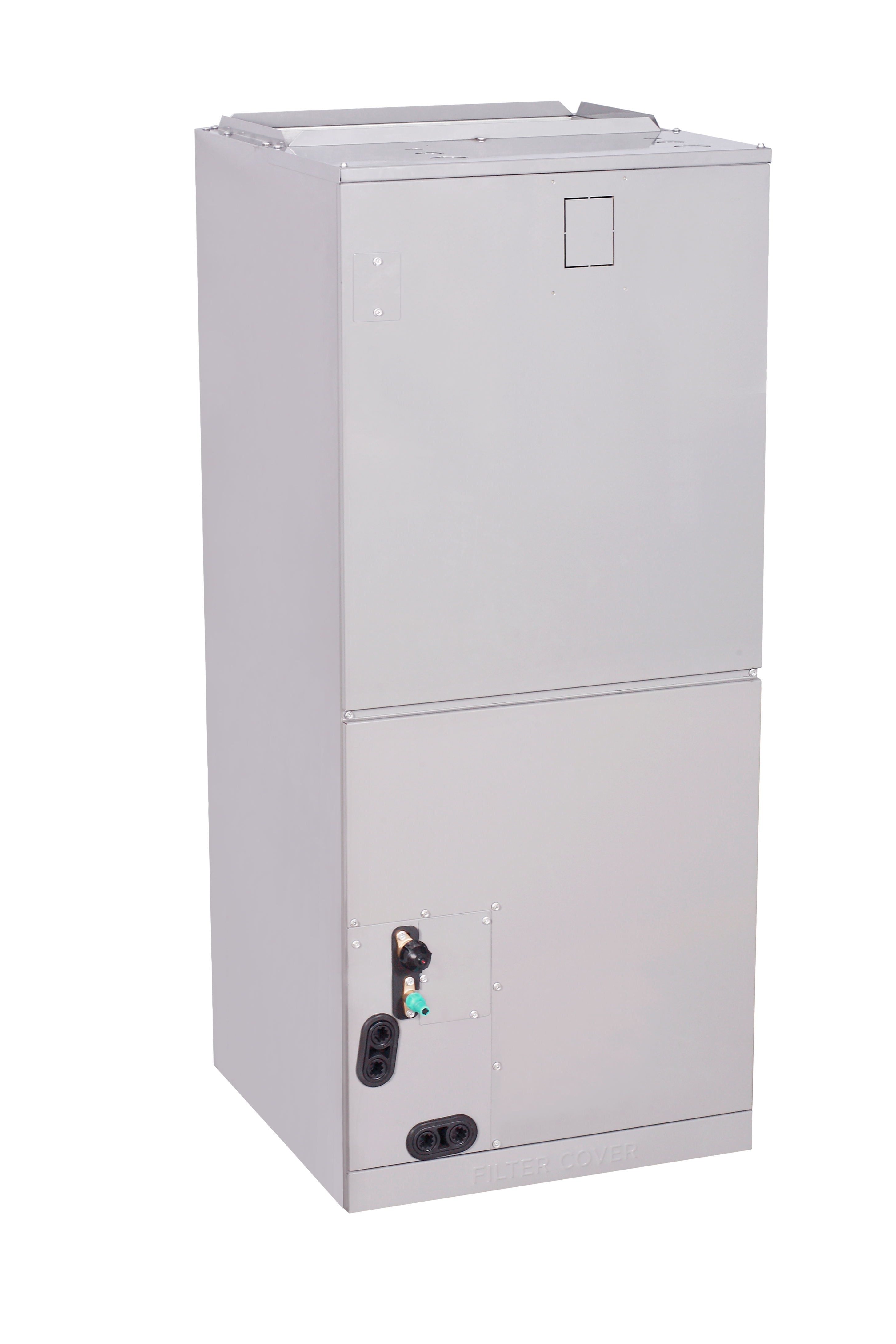

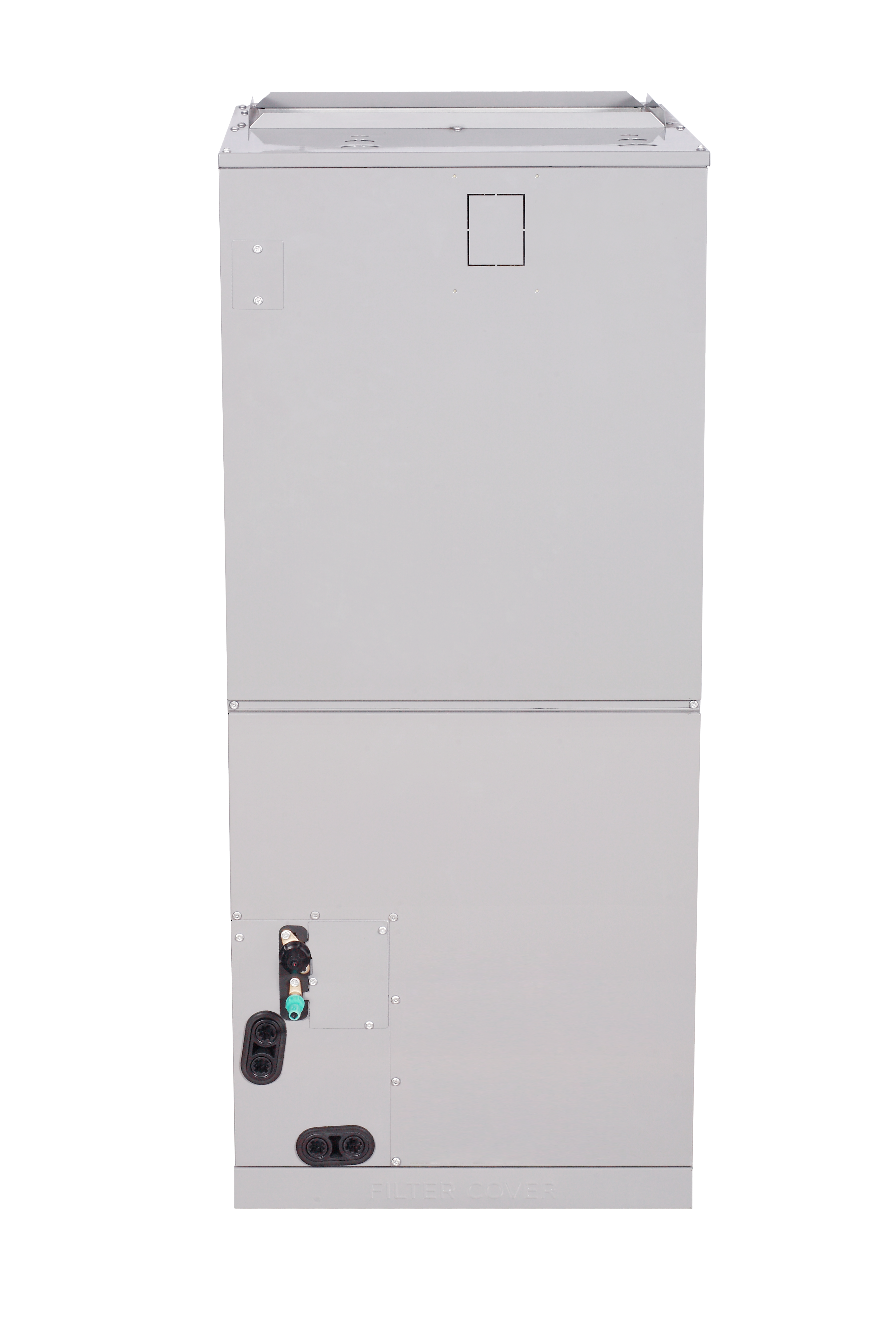

EVOX 2 ton Air Handler R454B

High Efficiency Indoor Unit Structure
Model#: MAUHE-H24B-2A

  • Symmetric fan blower design

    • Enhanced airflow circulation

  • 4-way installation: Upflow, Downflow, Right, Left.

  • Compatible with 485 or 24V

    • Automatically identifying the control mode, no need for manual conversion.

  • Constant CFM ECM motor provides consistent airflow up to 0.8 in. w.c.

  • Electronic expansion valve (EEV) control

    • Better throttling for highly efficient operation.

  • Optional auxiliary heat kits available up to 25kW.

  • All-Aluminum Coil.

  • Quiet Operation

    • Down to 35 dB(A) level.

Technical Specifications

Refrigerant(ASHRAE)
R454B
Brand
Midea
BTU Cooling(BTU/h)
24,000
Colour
Gray
Connection-Liquid(OD)
3/8
Connection-Vapour/Gas(OD)
3/4
Unit Location
Indoor
Installation Type
Multi position
Country of Origin
China
Phase/Type
1/60Hz
Product Length/Depth
21 in
Product Height
45 in
Product Weight
106 lbs
Product Width
17.5 in
SEER2 Rating
18.3
System Type
Air Handler
Supply Voltage
230 V
Zone Type
Central ducted
BTU Heating(BTU/h)
24,000
HSPF2 (Region V)
7.7
Nominal Capacity
24,000
