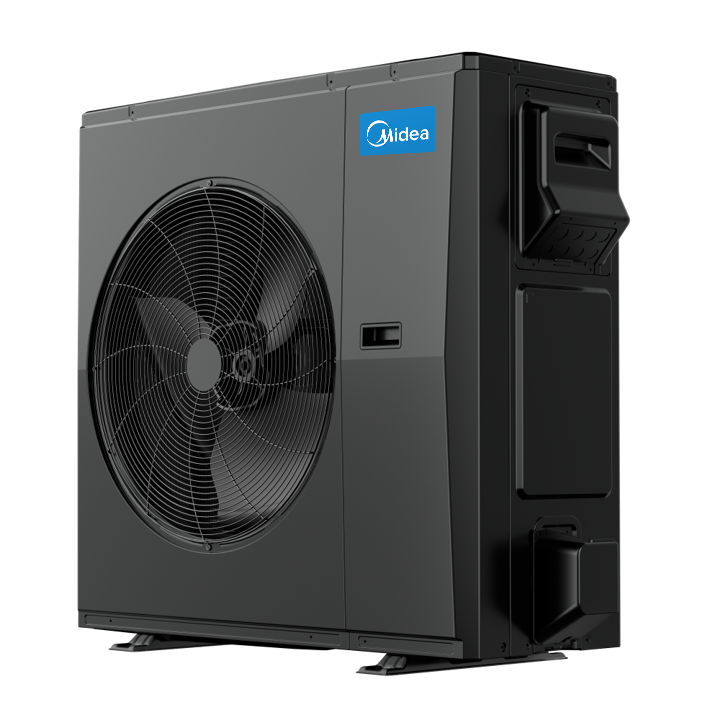

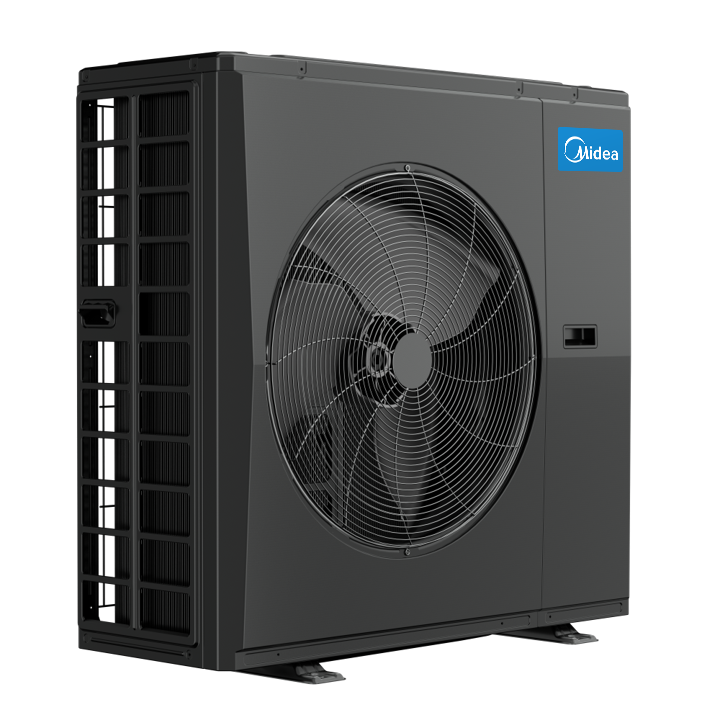

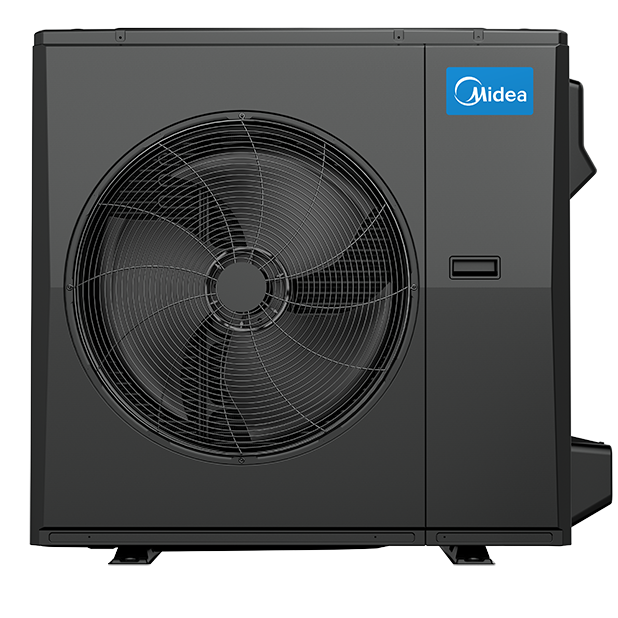

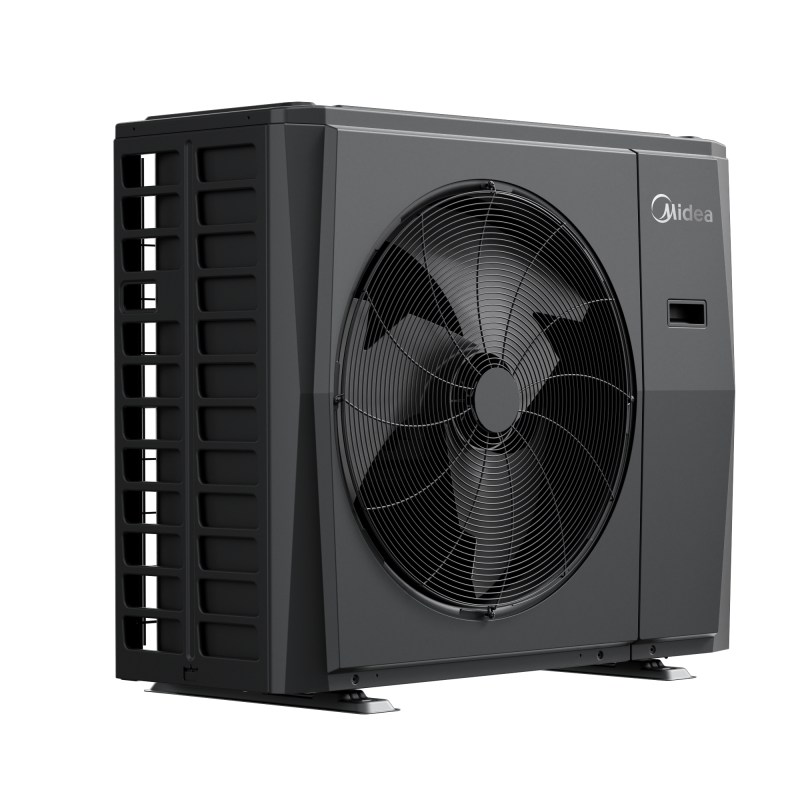

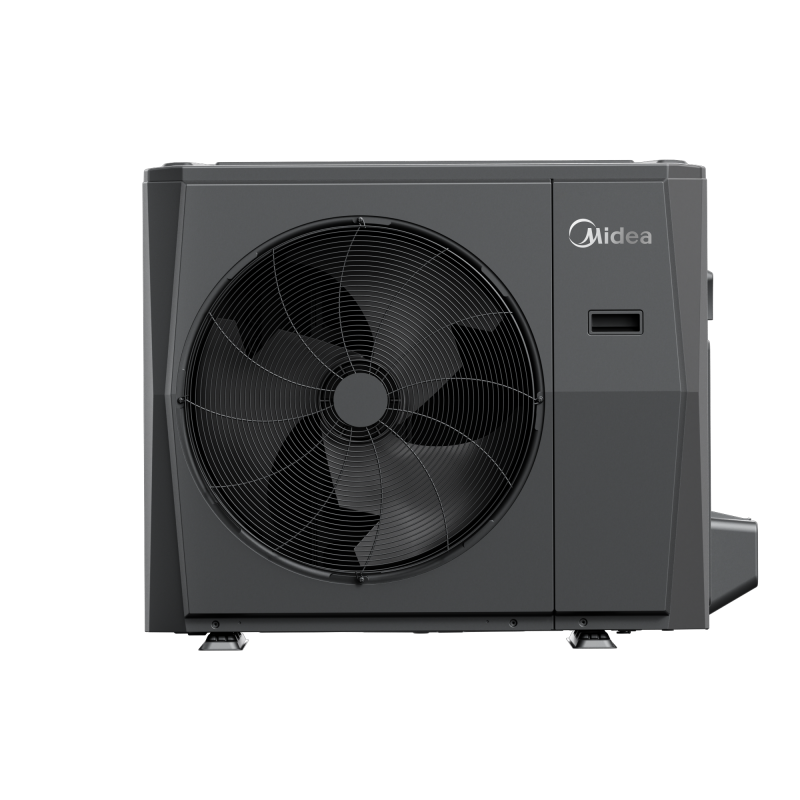

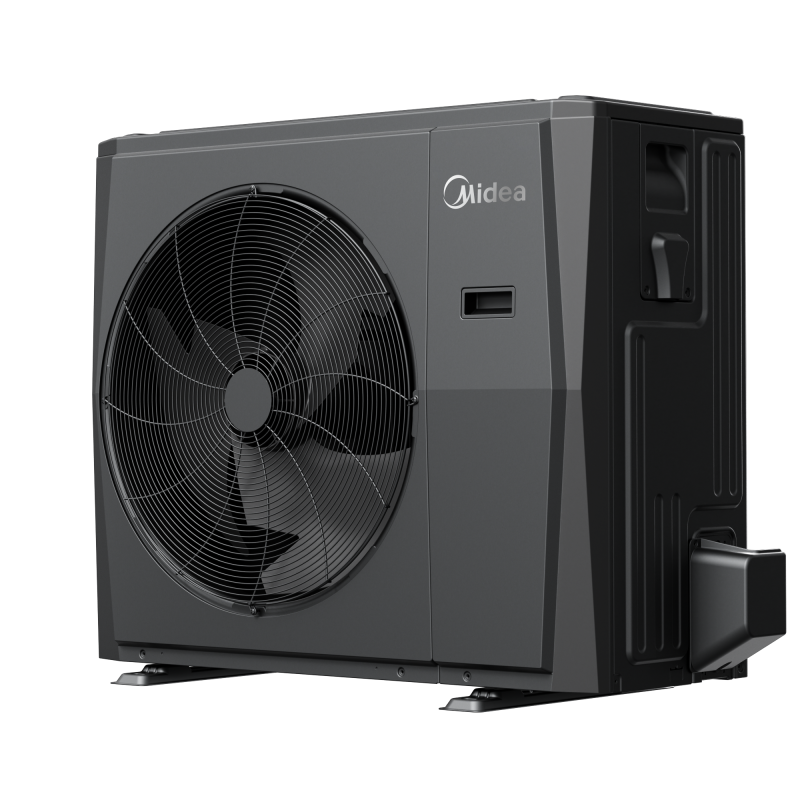

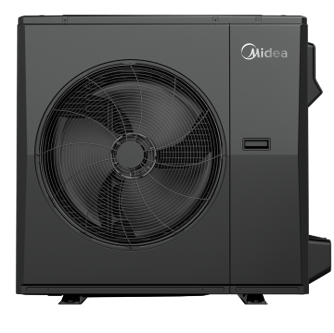

EVOX 3 ton Outdoor R454B

Ultimate Easy Upgrade Solutions
Model#: MO1SE-H36B-2A

  • Reliable in Extreme Cold ⁠

    • Heats efficiently down to -30°C (-22° F).

  • Energy Efficient ⁠

    • Up to 19 SEER2 and 10.8 HSPF2 for lower energy use.

  • Powerful Performance ⁠

    • Advanced compressor for strong heating in harsh weather.

  • ⁠Quiet & Durable

    • Low noise with a sturdy, all-weather design.

  • Easy to Install ⁠

    • Works with existing systems and wireless controls.

  • ⁠Eco-Friendly

    • Uses low-GWP R-454B refrigerant for a greener home.


Technical Specifications

Refrigerant(ASHRAE)
R454B
Brand
Midea
Fuse Size(MCA)
30 A
BTU Cooling(BTU/h)
36,000
Colour
Black
Compressor Type
Rotary Inverter
Connection-Liquid(OD)
3/8
Connection-Vapour (OD)
3/4
Unit Location
Outdoor
Country of Origin
China
Phase, Cycle
1/60Hz
Product Length/Depth
16.34 in
Product Height
38.39 in
Product Weight
204 lbs
Product Width
38.58 in
SEER2 Rating
15.8
System Type
Heat pump
Supply Voltage
230
Stage
2
Zone Type
Central ducted
BTU Heating(BTU/h)
37,000
HSPF2 (Region V)
7.9
Nominal Capacity
36,000
Tons
3
Sound Level (dBA)
63
