Home Products Ductless Indoor Unit

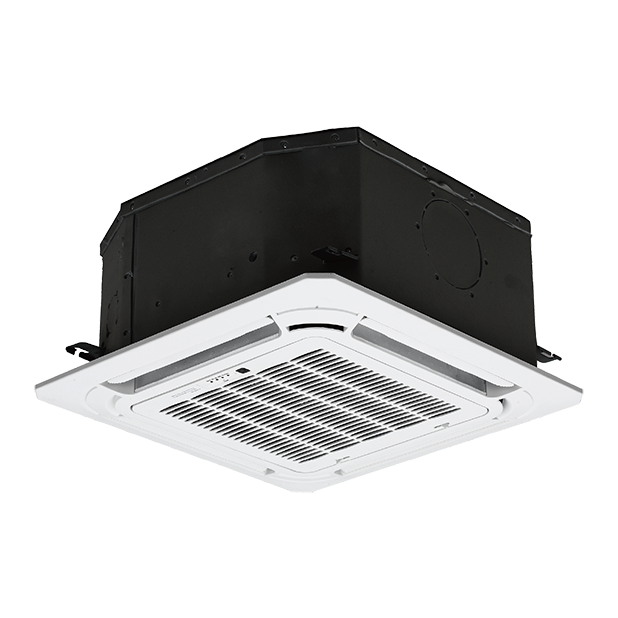

9K Four Way Cassette

Tailored designs for different spaces and functions
Model#: MCDHU-H09B-2A

  • Flexile Indoor Unit Options

  • Supports up to 6 zones and is compatible with both ducted & ductless indoor units, allowing for tailored heating and cooling solutions

  • For harsh winters with high heating capacity

  • For the most convenient installation and flexible home comfort management

  • Various multi-zone indoor for every room & style

    • Wall-mounted units

    • Ceiling cassettes

    • Slim duct & air handling units

    • Console and ceiling & floor units



Technical Specifications

Refrigerant(ASHRAE)
R454B
Brand
Midea
BTU Cooling(BTU/h)
9,000
Colour
White
Connection-Liquid(OD)
1/4
Connection-Vapour/Gas(OD)
3/8
Unit Location
Indoor
Installation Type
4 Way Cassette
Country of Origin
China
Phase/Type
1/60Hz
Product Length/Depth
22.5 in
Product Height
9.63 in
Product Weight
35 lbs
Product Width
22.5 in
System Type
Ductless
Supply Voltage
230 V
Zone Type
Multi
BTU Heating(BTU/h)
10,000
Nominal Capacity
9,000
Tons
3/4
Sound Level (dBA)
43 / 40 / 38 / 26 / 24
