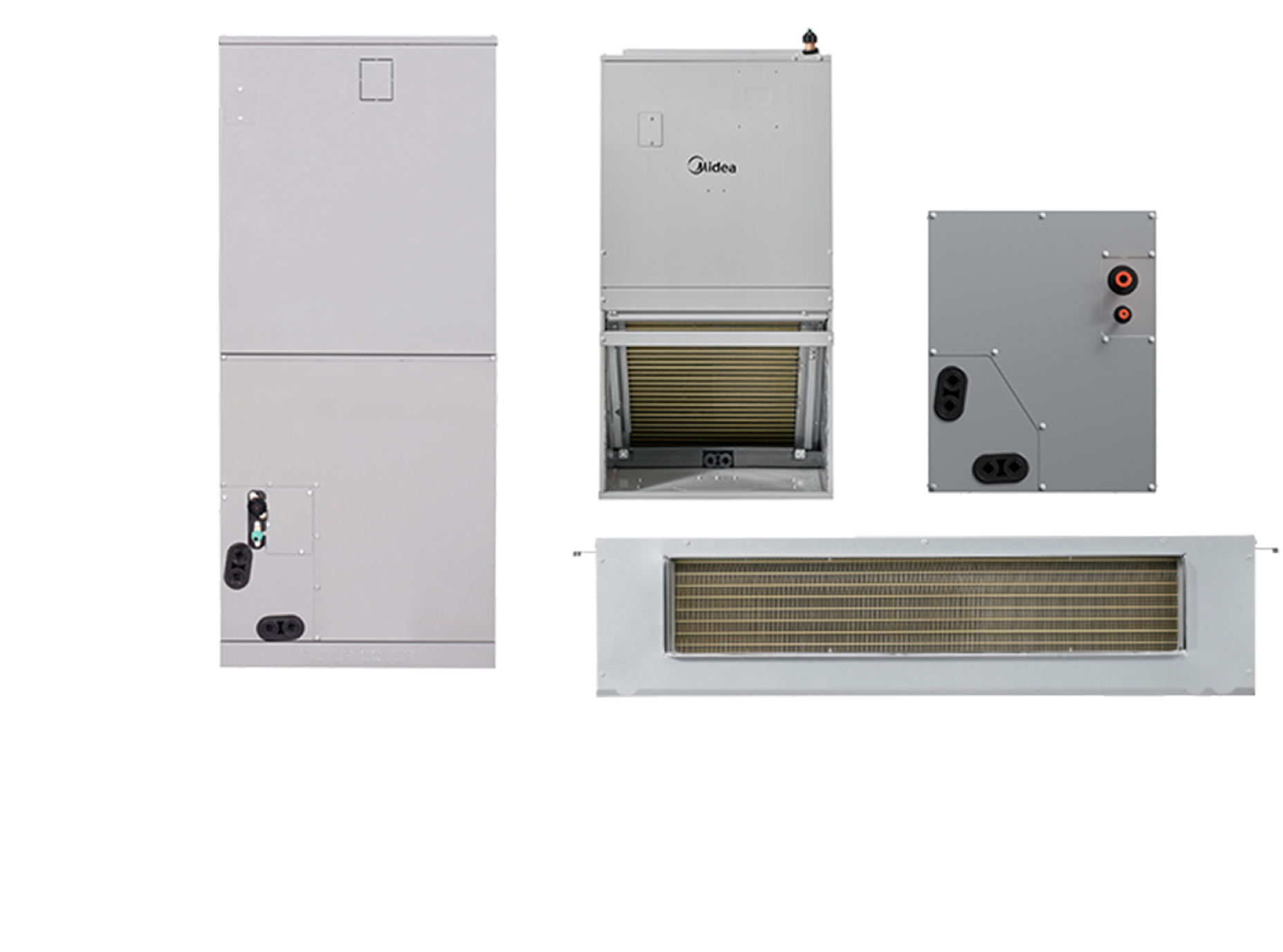

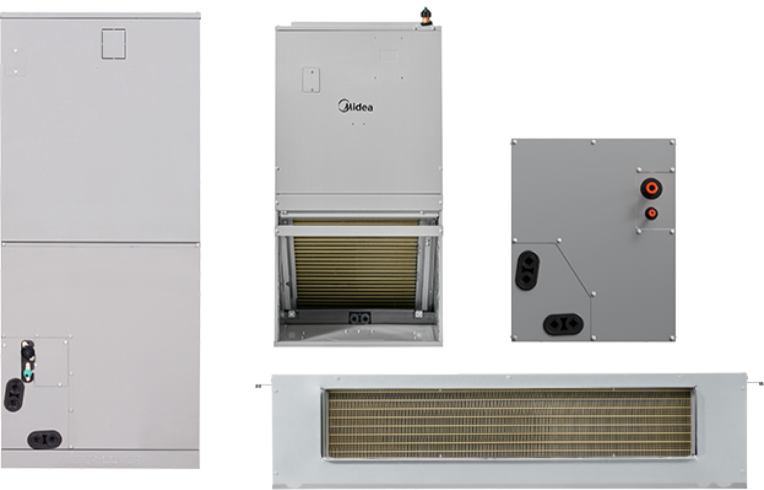

Multiple Unit Styles, Multiple Life Styles
All EVOX products feature compact unit size and a highly compatible system that can flexibly adapt to existing spaces and equipment, making installing and replacing a heat pump system in your home a real ease.
MULTI-POSITION AIR
HANDLER
WALL-MOUNTED TYPE
AIR HANDLER
HIGH STATIC PRESSURE
CEILING-TYPE AIR HANDLER
DUAL-FUEL
SYSTEM (COIL)

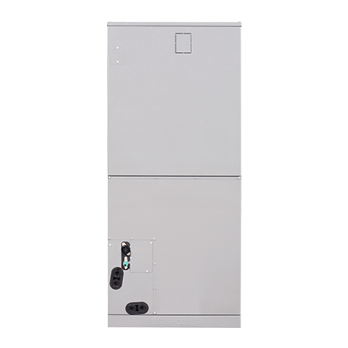

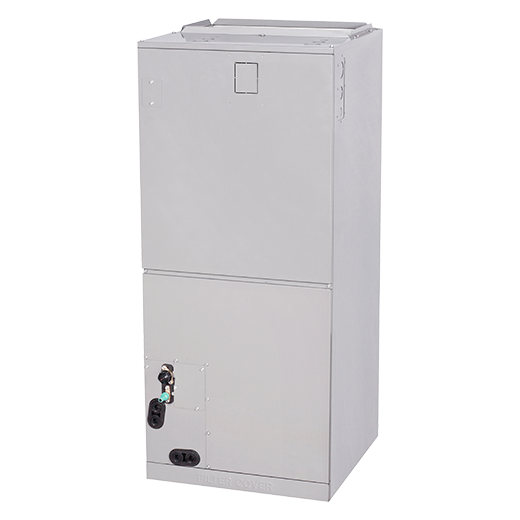

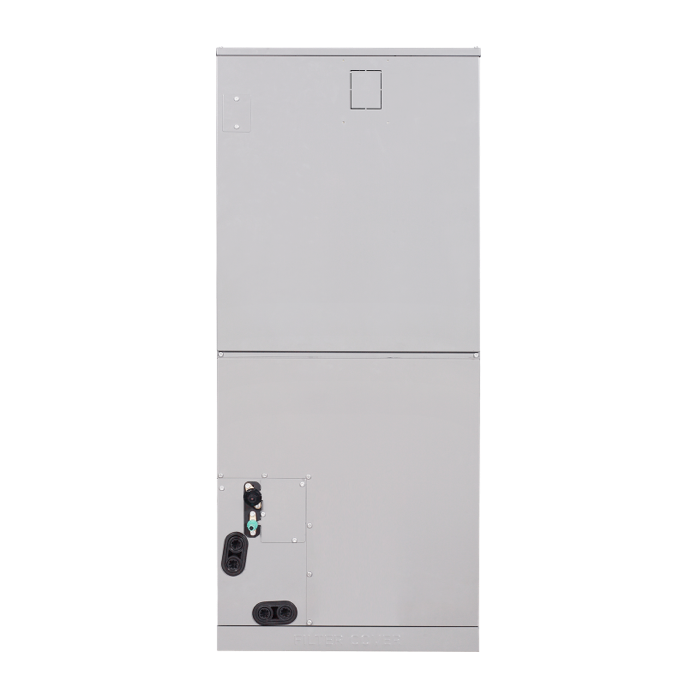

Multi-Position
Air Handler
·
COMPATIBLE WITH 485 OR 24V
·
CONSTANT AIRFLOW ECM MOTOR 2.0
PROVIDES CONSISTENT AIRFLOW UP
TO 0.8 IN. W.C.
·
ELECTRONIC EXPANSION VALVE (EEV)
CONTROL
·
OPTIONAL AUXILIARY HEAT KITS UP
TO 25KW
·
ALL-ALUMINUM COIL
SEER2 Up to
19.0
EER2 Up to
12.5
HSPF2-4 Up to
10.2
1.5-5 Tons
A
1.5-2 tons:
21”x21”x49”
B
2.5-3 tons:
21”x21”x49”
C
4-5 tons:
24-1/2”x21”x53”
CONSTANT AIRFLOW TECHNOLOGY 2.0 ALLOWS FOR SHORTER INSTALLATION & SETUP TIME

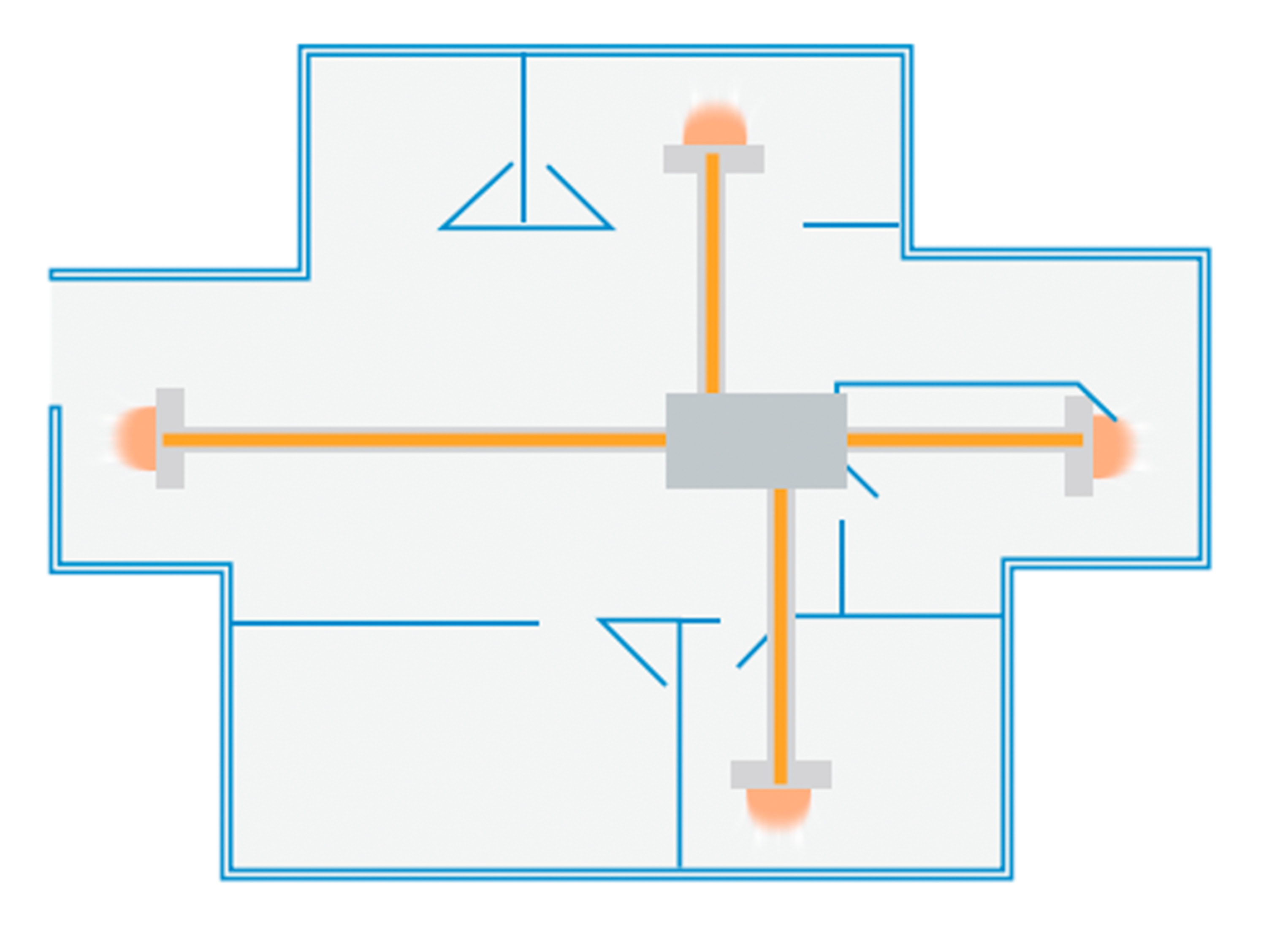

Different Ductwork Designs, Same Air Volume

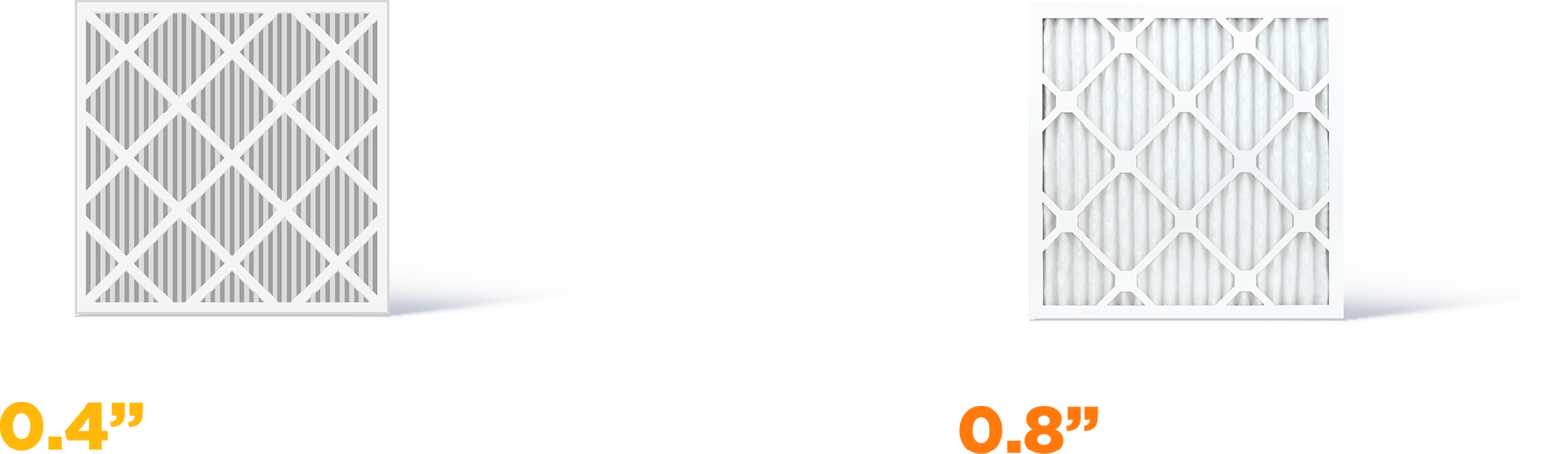

Normal Filter
MERV 13
Diverse Filtration Needs,Same Air Volume

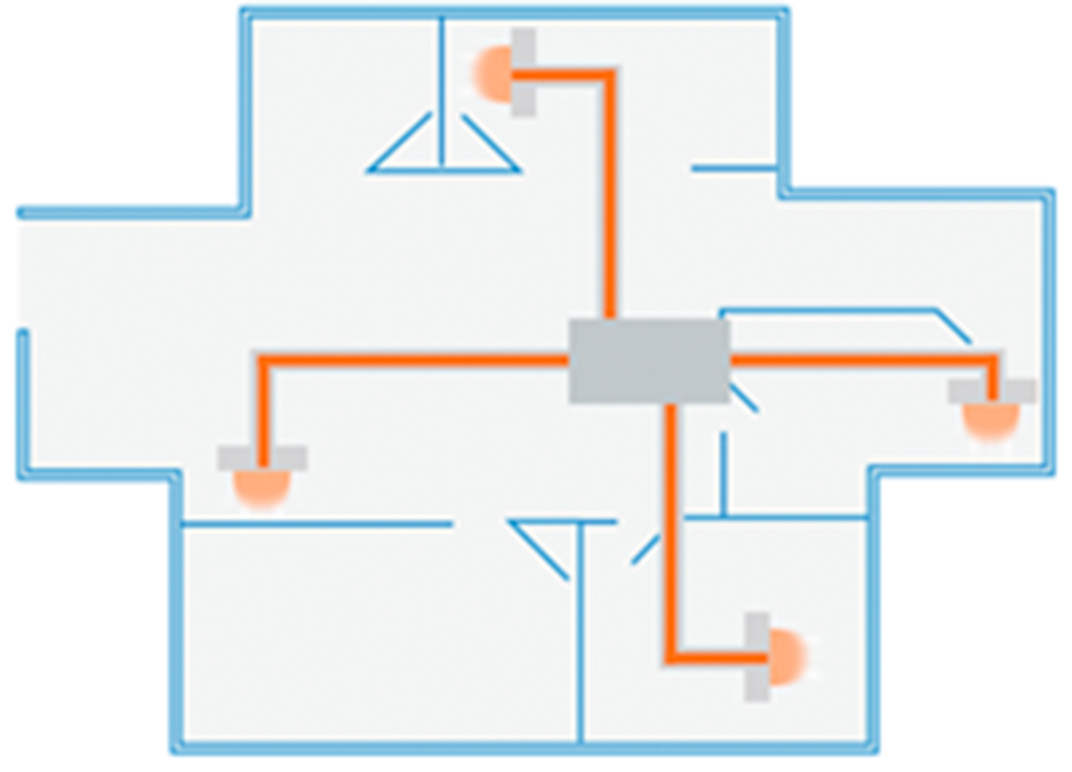

ALLOWS CUSTOMIZED AIR VOLUME FOR THE WHOLE HOME
A
Case 1:
A house in a hotter Southern region, like Las Vegas, needs faster cooling
B
Case 2:
A limited space needs smaller airflow
Case 3:
Some homeowners prefer a quieter environment

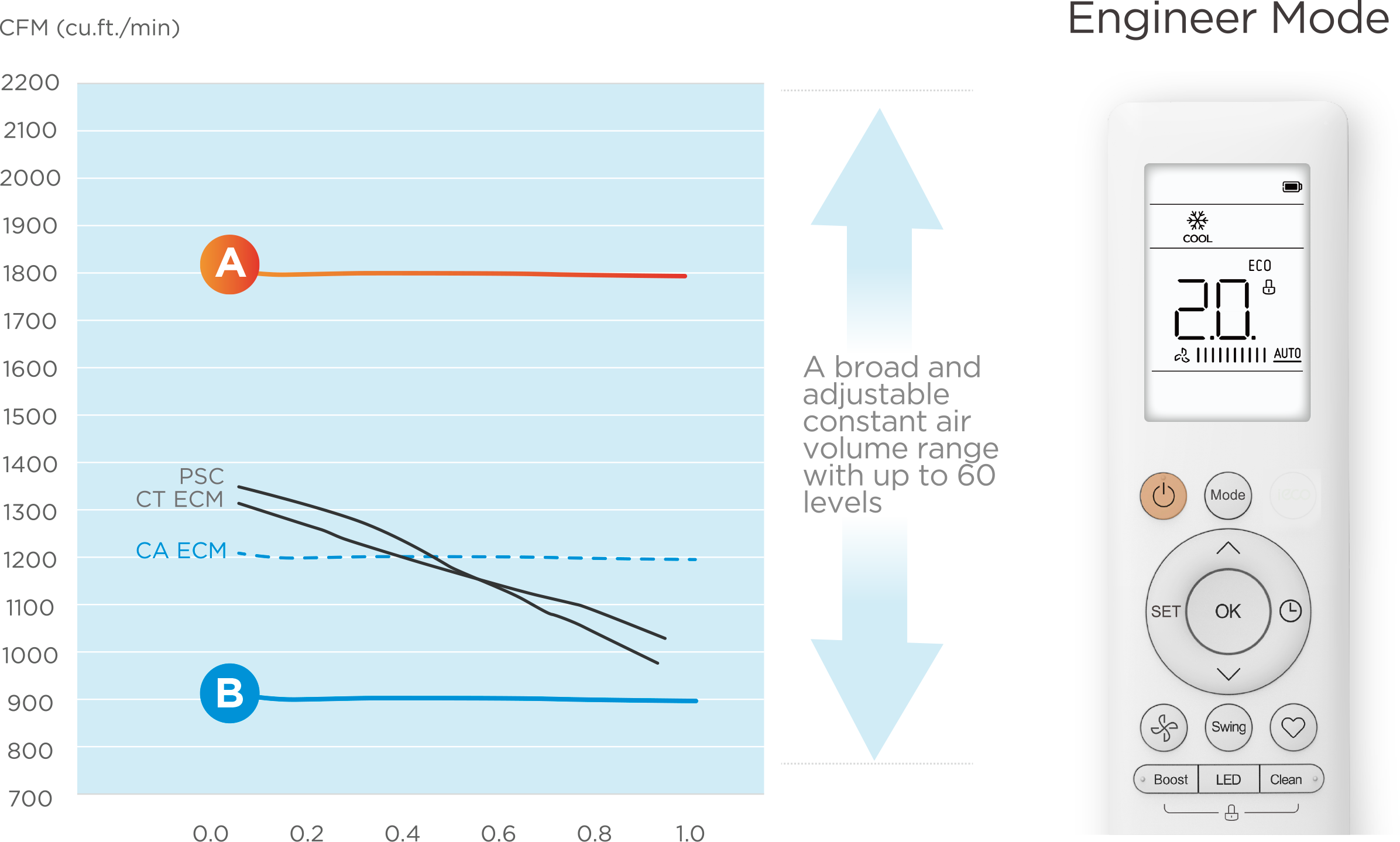

CFM VS TOTAL ESP
TOTAL ESP(EXTERNAL STATIC PRESSURE)

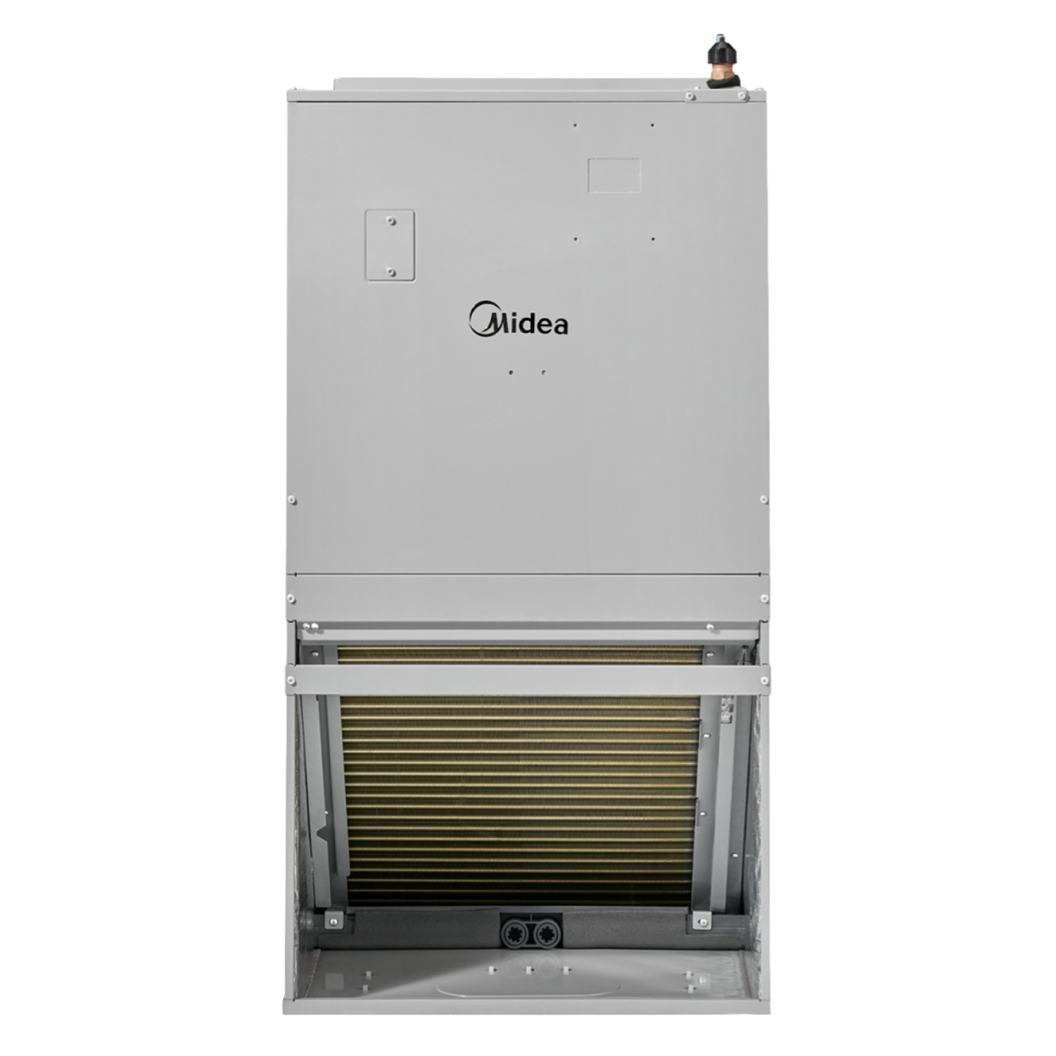

Wall-Mounted
Type Air Handler
·
COMPATIBLE WITH 485 OR 24V
·
CONSTANT AIRFLOW ECM MOTOR
2.0 PROVIDES CONSISTENT AIR
FLOW OF UP TO 0.8 IN. W.C.;
·
ELECTRONIC EXPANSION VALVE
(EEV) CONTROL
·
OPTIONAL AUXILIARY HEAT KITS
UP TO 10KW
·
ALL-ALUMINUM COIL
SEER2 Up to
19.3
EER2 Up to
12.1
HSPF2-4 Up to
10.8
1.5-3 Tons
A
1.5-2 tons:
20-1/4”x15-3/4”x36-1/2”
C
2.5-3 tons:
22”x19”x40”
CONSTANT AIRFLOW TECHNOLOGY 2.0
ALLOWS FOR SHORTER INSTALLATION & SETUP TIME
Different Ductwork Designs, Same Air Volume
Normal Filter
MERV 13
Diverse Filtration Needs,Same Air Volume
ALLOWS CUSTOMIZED AIR VOLUME FOR THE WHOLE HOME
A
Case 1:
A house in a hotter Southern region, like Las Vegas, needs faster cooling
B
Case 2:
A limited space needs smaller airflow
Case 3:
Some homeowners prefer a quieter environment
CFM VS TOTAL ESP
TOTAL ESP(EXTERNAL STATIC PRESSURE)

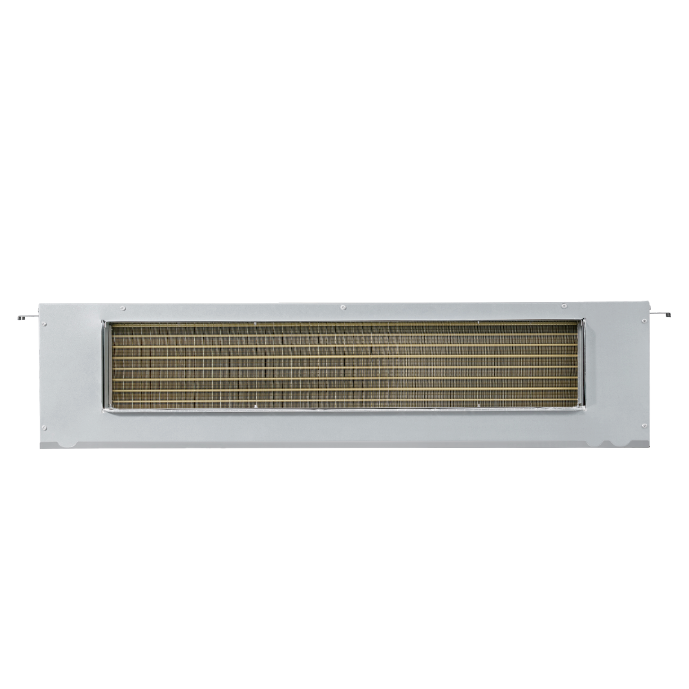

High Static Pressure
Ceiling-Type
Air Handler
·
COMPATIBLE WITH 485 OR 24V
·
CONSTANT TORQUE ECM MOTOR
PROVIDES SUFFICIENT AIRFLOW
OF UP TO 0.8 IN. W.C.;
·
ELECTRONIC EXPANSION VALVE
(EEV) CONTROL
·
OPTIONAL AUXILIARY HEAT KITS
UP TO 10KW
·
ALL-ALUMINUM COIL
SEER2 Up to
16.8
EER2 Up to
12
HSPF2-4 Up to
10.5
1.5-3 Tons
A
1.5 tons:
43-1/2”x23-3/8”x10-7/8”
C
2.5 tons:
49-1/8”x23-3/8”x10-7/8”
B
2 tons:
49-1/8”x23-3/8”x10-7/8”
D
3 tons:
62-1/8”x23-3/8”x10-7/8”

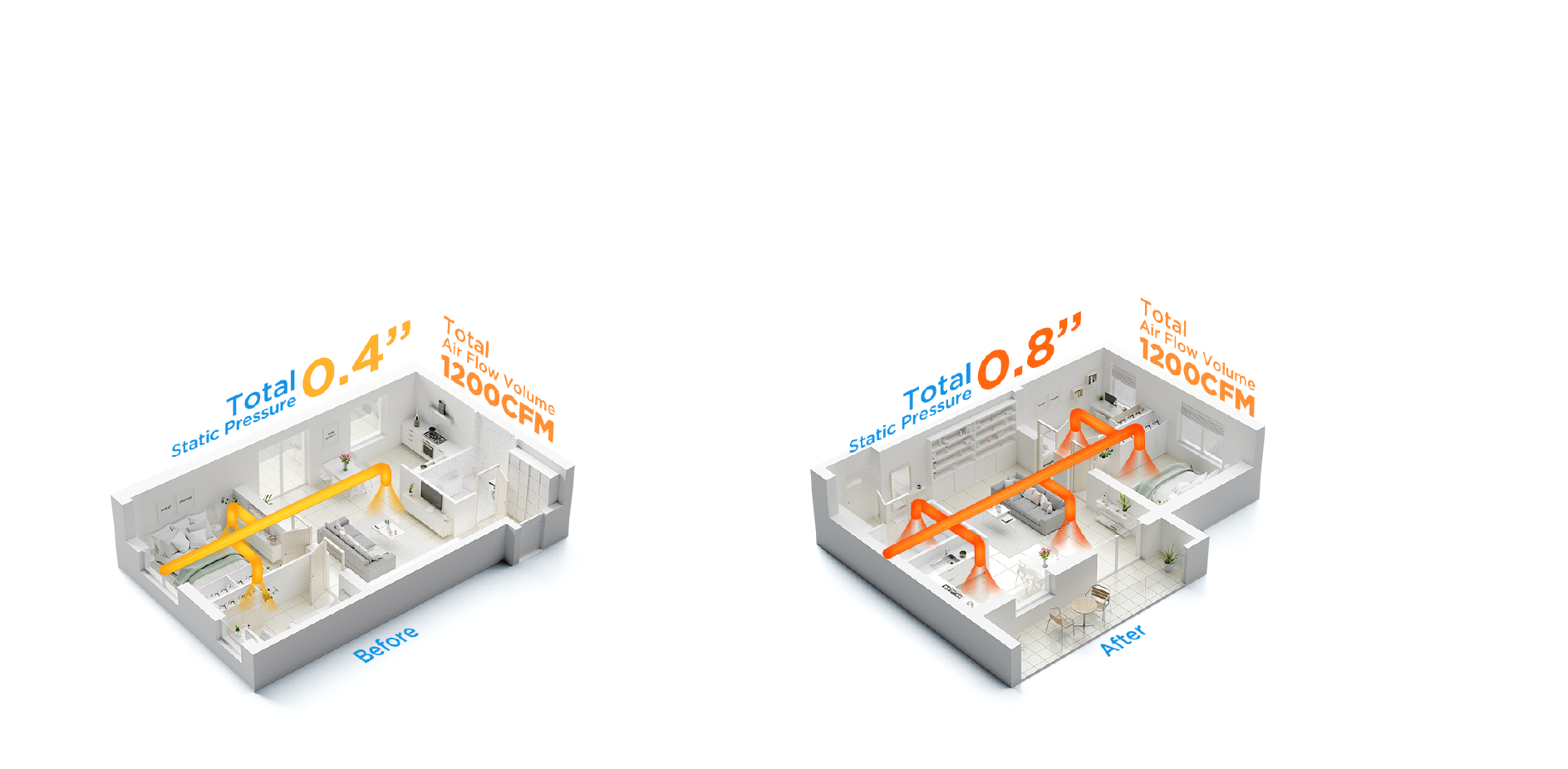

AMONGST THE HIGHEST STATIC PRESSURE IN THE INDUSTRY ENSURES SUFFICIENT AIRFLOW UP TO O.8"W.C.
SUFFICIENT AIRFLOW
TOTAL STATIC PRESSURE 0.4”
SUFFICIENT AIRFLOW
TOTAL STATIC PRESSURE 0.8”

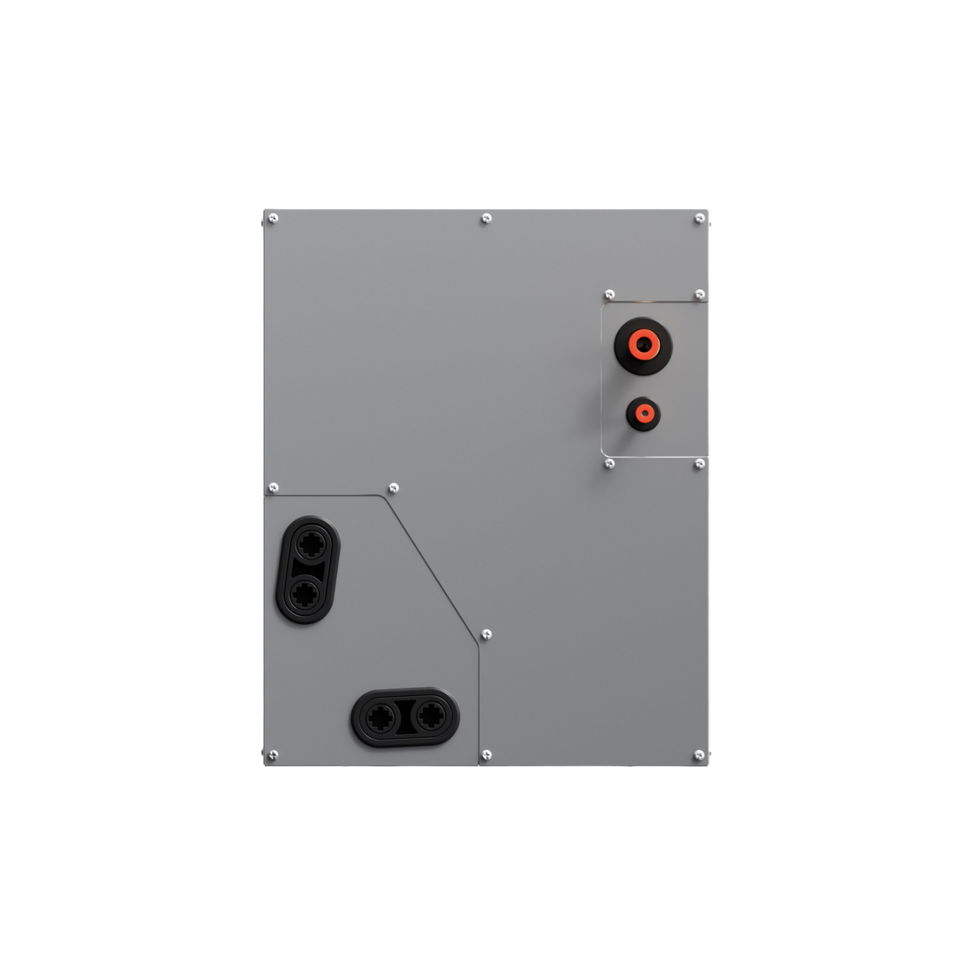

Dual-Fual System
·
COMPATIBLE WITH 485 OR 24V
·
ELECTRONIC EXPANSION VALVE
(EEV) CONTROL
·
ALL-ALUMINUM COIL
·
FLEXIBLE MULTI-POISE DESIGN
·
COMPLETE SIZE OPTIONS
SEER2 Up to
16.1
EER2 Up to
11.7
HSPF2-4 Up to
9.5
1.5-5 Tons
THE MOST COMPREHENSIVE SIZE OPTIONS
A
1.5-2 tons:
14-1/2”× 21”× 18”
2.5-3 tons:
14-1/2”× 21”× 23-1/2”
B
1.5-2 tons:
17-1/2”× 21”× 18”
2.5-3 tons:
17-1/2”× 21”× 23-1/2”
C
2.5-3 tons:
21”× 21”× 23-1/2”
4-5 tons:
21”× 21”× 27-1/2”
D
5 tons:
24-1/2”× 21”× 28”
VERSATILE APPLICATIONS

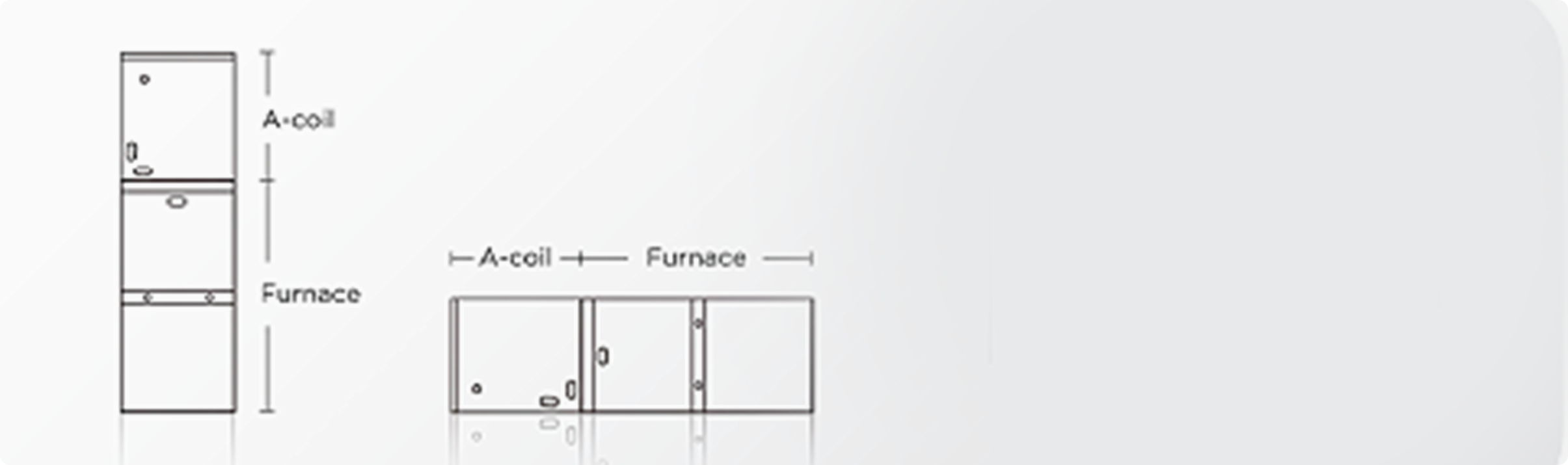

The Flexible
Multipoise Design

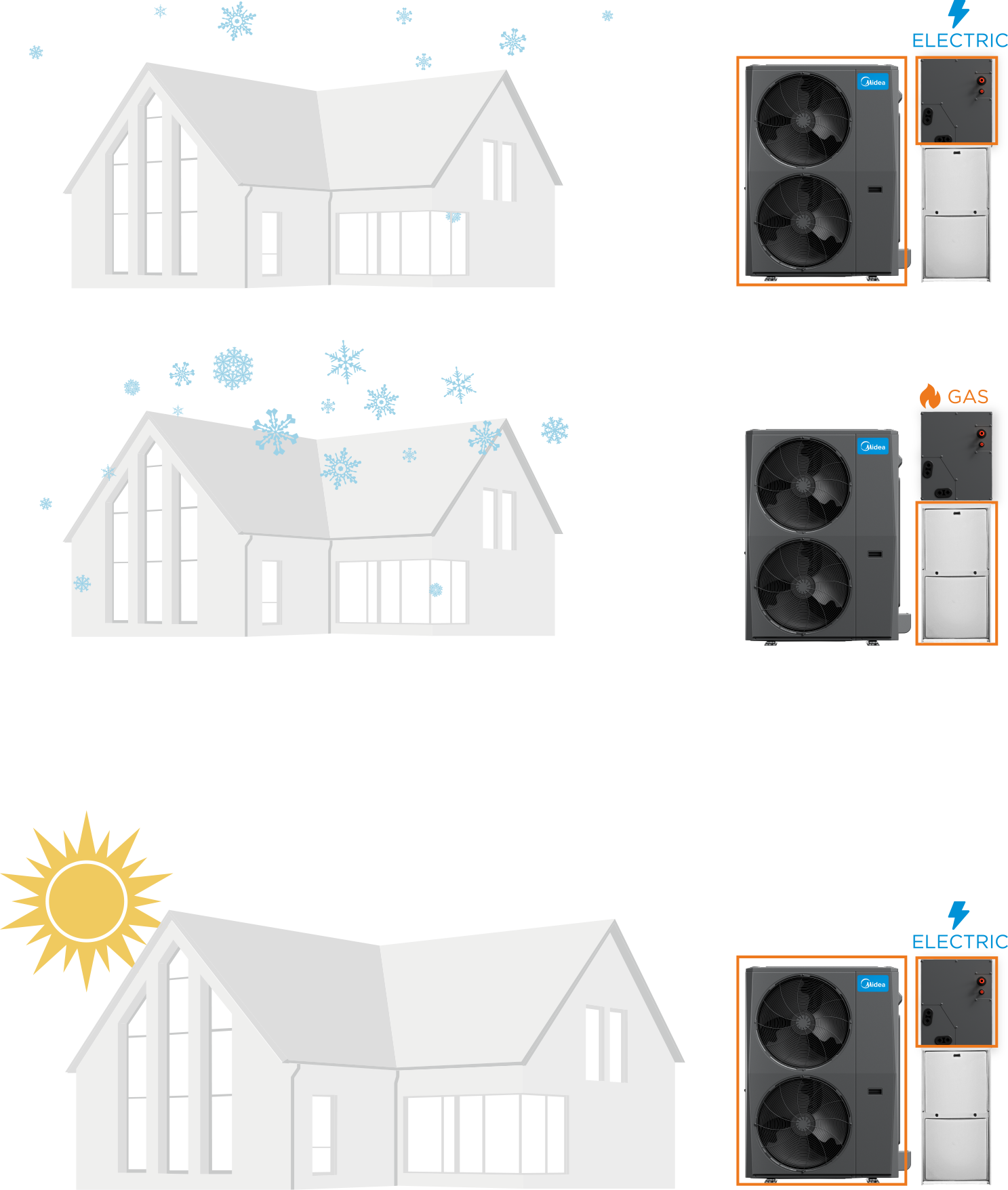

DURING WINTER:
DUAL-FUEL CAPABILITY
DURING SUMMER:
EFFICIENT COOLING
Cold
Experience the comfort and effiency of heat pumps.
Freezing
When the temperature drops below -22°F, you can use the gas furnace as an available backup.
Hot
Experience ultimate comfort with highly efficient and powerful cooling capabilities.
